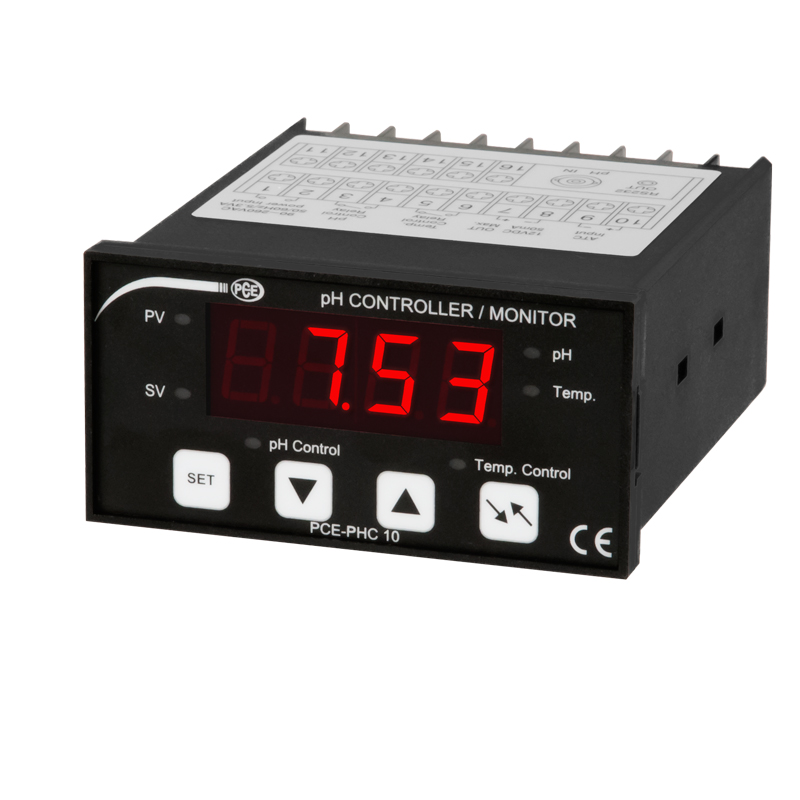

PCE PHC 10 pH Controller (0~14 pH; 0~65°C)

-Measured variable: pH

Measuring range: 0 ... 14 pH

Resolution: 0.01 pH

Accuracy: ± (0.02 pH + 2 digits)

-Measured variable: temperature

Measuring range: 0 ... 65°C / 32 ... 149°F

Resolution: 0.1°C / 0.18°F

Accuracy: ± 0.8°C / 1.44°F

pH input impedance: 1012 ohms

Temperature compensation:

Manual: -30 ... 100°C / -22 ... 212°F

Automatic: 0 ... 65°C / 32 ... 149°F

3-point calibration: pH 7, pH4, pH10

Connection pH electrode: BNC

Ampling rate: About 1 second

Display: 4 digit LED display; 14 mm digit height

NO relay: 250V AC / 0.5A; 24V DC / 0.5A

Spannungsausang: 12V / 0.05A DC

Interface: Serial RS232

Operating conditions: 0 ... 50°C / 32 ... 122°F, max. 80% rh

Power supply: 90 ... 260V AC / 50/60 Hz

Input:

Approx. 4.7 VA at 110V AC

Approx. 5.3 VA at 220V AC

Weight: About 275 g / 9.7 oz meter only

Dimensions: 96 x 48 x 107 mm / 3.8 x 1.9 x 4.2 in

Front panel: 92 x 46 mm / 3.6 x 1.8 in

Delivery Scope:

1 x pH Controller PCE-PHC 10

1 x User manual
