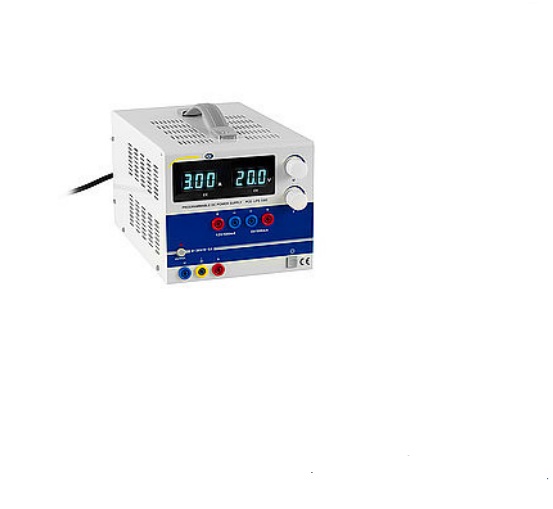

PCE LPS 3305 Programmable Power Supply (115/230 V, 50/60 Hz)

Input voltage: 115/230 V, 50/60 Hz AC voltage (switchable) ± 10%

Fuse: 115 V 4 AT / 230 V 2 AT

Output voltage (control output): 0 ... 30 V

Output current (control output): 0 ... 5 A DC

Output voltage (output 1): 12 V

Output current (output 1): 500 mA

Output voltage (output 2): 5 V

Output current (output 2): 500 mA

Stability

continuously variable voltage output: 1 x 10 ^ 4 + 3 mV

continuously variable current output:2 x 10 ^ 3 + 3 mA

Fixed voltage outputs: ≤ 1%

Load stability

continuously variable voltage output:

≤ 1 x 10 ^ 4 + 2 mV (I ≤ 3 A)

≤ 1 x 10 ^ 4 + 5 mV (I> 3 A)

continuously variable current output:

≤ 2 x 10 ^ 3 + 3 mA (I ≤ 3 A)

≤ 2 x 10 ^ 3 + 5 mA (I> 3 A)

Fixed voltage outputs: ≤ 1%

Ripple / Noisecontinuously variable voltage output:

≤ 0.5 mVeff (I ≤ 3 A)

≤ 1 mVeff (I> 3 A)

continuously variable current output:

<3 mAeff (I> 3 A)

Fixed voltage outputs: ≤ 10 mVeff

Overload protection: current limiting circuit

Voltage display: LED display ± 0.2% + 2 digits

Power indicator: LED display ± 1.0% + 2 digits

Dimensions (WxHxD): 170 x 160 x 250 mm

Weight: approx.7 kg

Delivery Scope:

1 x programmable power supply PCE-LPS 3305

1 x USB cable

1 x software

1 x 2 A fuse

1 x 4 A fuse

1 x instruction manual
