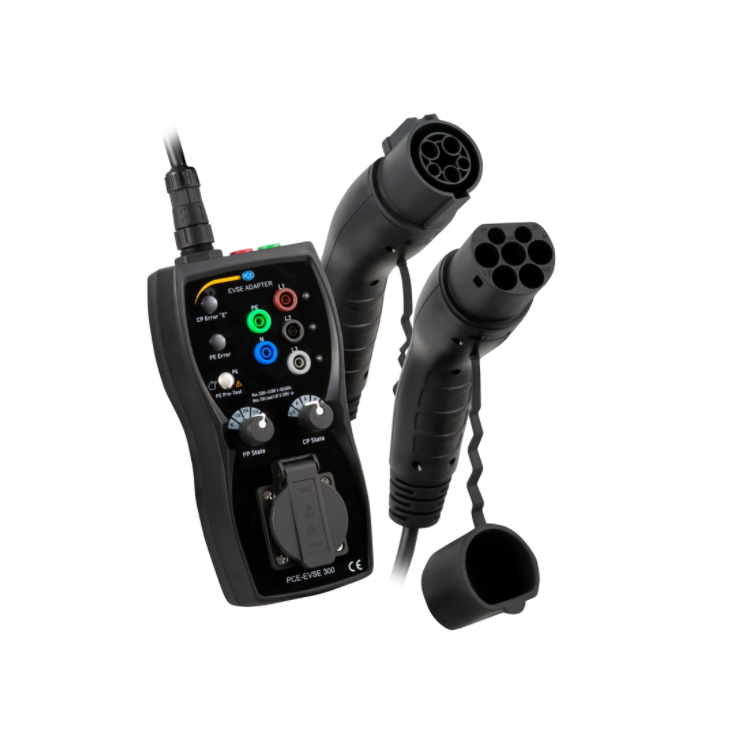

PCE EVSE 300 EVSE Measuring Device (250 / 430 V AC, 10 A)

Outputs (only for test purposes)

Measuring connections

L1, L2, L3, N, PE

max. 250 / 430 V AC, 10 A

laboratory plug

Schuko connection: max. 250 V AC, 10 A

Fuse from the Schuko connection: fuse F 10 A / 250 V, 5 x 20 mm / 0.19 x 0.78"

CP signal output: ± 12 V PWM

Further specifications

Input voltage: 1 phase: 250 V AC / 3 phase 430 V AC, 50 / 60 Hz, max. 10 A

Measurement category: CAT II 300 V

Protection class: IP54

Pollution degree: 2

Operating conditions: 0 ... 40 °C / 32 ... 104 °F, 10 ... 85% RH, non-condensing

Storage conditions: -10 ... 50 °C / 14 ... 122 °F, 10 ... 60% RH, non-condensing

Maximum working height: max. 2000 m / 6561 ft

Dimensions (handheld only): 277 x 109 x 63 mm / 10.9 x 4.3 x 2.4"

Weight: ca. 1 kg / 2.2 lb

Delivery

1 x EVSE Measuring Device PCE-EVSE 300

1 x Charging cable plug type 1

1 x Charging cable plug type 2

1 x Transport bag

1 x Instruction manual
