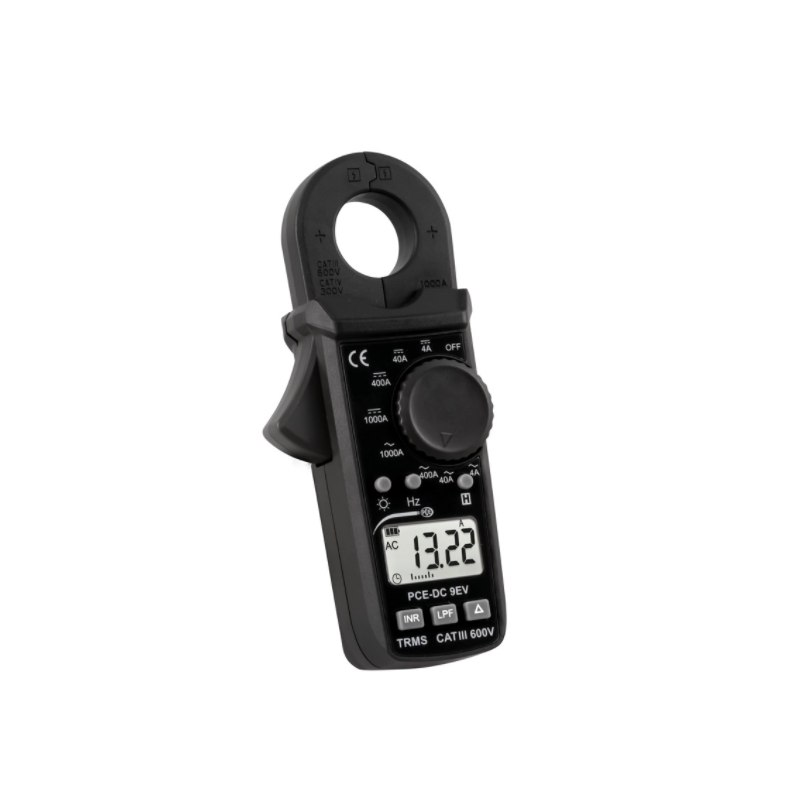

PCE DC 9EV EVSE Clamp Meter (0~1000 A AC/DC)

DC Current

Measuring range: 0 ~ 1000 A DC

Resolution: 1 mA DC ~ 1 A DC

AC Current

Measuring range: 0 ~ 1000 A AC

Resolution: 1 mA DC ~ 1 A AC

Frequency

Measuring range: 1 ~ 4 kHz

Resolution: 0.1/1

Further specifications

All accuracies apply in an environment between 18 ... 28 °C / 64 ... 82 °F

Clamp meter inner diameter: 25 mm / 0.98"

Display: LC display

Measuring range selection: manual

Power supply: 2 x 1.5 V AAA batteries

Power consumption: 22 mA with background lighting switched off

Measuring rate

3 Hz with numerical view

30 Hz with bar graphs

Operating conditions: -10 ... 50 °C / 14 ... 122 °F, <85 % RH, non-condensing

Storage conditions: -20 ... + 60 °C / -4 ... 140 °F, <75 % RH, non-condensing

Maximum altitude: 2000 m / 6561 ft

Dimensions: 152 mm x 66 mm x 36 mm / 5.98 x 2.59 x 1.41"

Weight: 190 g / 6.7 oz (with batteries)

Delivery

1 x Clamp Meter PCE-DC 9EV

1 x Transport bag

2 x 1.5 AAA batteries

1 x Instruction manual

Accessories (separatedly order)

Calibration certificate CAL-PCE-DC for clamp meters
