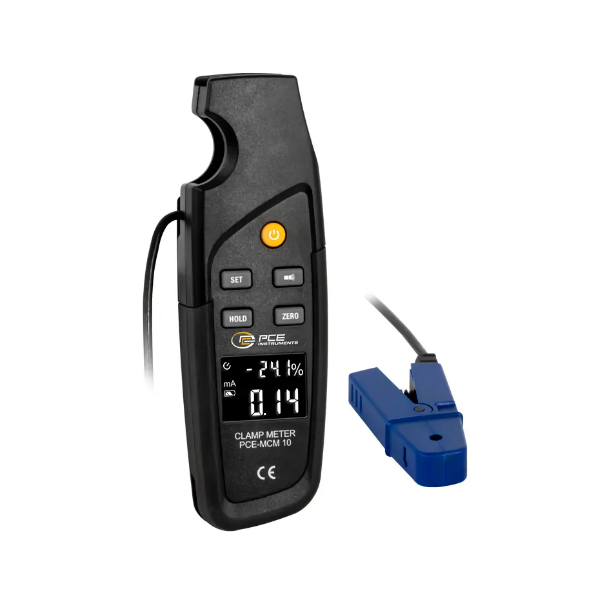

PCE DC 10 Clamp Meter (±21~±99.9 mA DC; 0.1 mA DC)

Measuring range: ±20.99 mA DC

Resolution: 0.01 mA DC

Accuracy: ±(0.3 % v. Mw. + 8 Digits)

Measuring range: ±21.0 … ±99.9 mA DC

Resolution: 0.1 mA DC

Accuracy: ±(1 % v. Mw. + 8 Digits)

Influence of the earth's magnetic field on the measured value, max. 0.25 mA DC

Diameter of clamp opening: Ø5 mm

Switch-off: Automatic

Continuously switched on: After 10 minutes OFF

Operating voltage: 3V via 2 AA batteries

Battery life: Approx. 40 hours

Protection class: IP40

Overvoltage categories: CAT II 300V

Operating conditions: -10 … 50°C / 14 ... 122°F

Storage conditions: -15 … 60°C / 5 ... 140°F

Environmental humidity: <90% r. F. at < 30°C / 86°F; <75% r. h. at 30 ... 50°C / 86 ... 122°F

Working altitude: 0 ... 2000 m / 6,561 ft above sea level

Dimensions:

Handheld device: 180 x 55 x 39 mm / 7.1 x 2.2 x 1.5 in

Current clamp: 90 x 40 x 1.5 mm / 3.5 x 1.6 x 0.06 in

Cable length: approx. 1 m / 3.3 ft

Weight: 268 g / 0.6 lbs with batteries inserted

Delivery Scope:

1 x Clamp Meter PCE-DC 10

2 x 1.5V AA battery

1 x Instruction manual
