Specifications
Resolution
0.1 or < 0.2% of the measured value
(for probes with a measuring range of up to 1500 μm / 1.5 mm / 59 mil)
1 or < 0.2% of the measured value
(for probes with a measuring range of more than 1500 μm / 1.5 mm / 59 mil)
Display:
High-resolution color display, backlit
Measuring units μm, mm or mils
Menu languages: English, German, French, Italian, Spanish, Turkish, Czech, Chinese
Storage:
Direct mode: Max. 1,000 measured values in Fe (Type F) and nFe (Type N) mode
File memory: Max. 100,000 measured values
Statistics parameters: N, x̅¯, σ, Max, Min, Cp, Cpk, Kvar
On-screen statistics displayed: x̅¯, σ, Max, Min
Alarm limits: Programmable with visual and audible signaling
Interfaces: USB 2.0, Bluetooth 4.0
Operating temperature: 0 ... +50 °C / +32 ... +122 °F
Power supply: 3 x 1.5 V AA batteries
Dimensions: Approx. 163 x 82 x 40 mm / 6.42 x 3.23 x 1.58" (H x W x D)
Weight: Approx. 290 g / 0.64 lb (including batteries)
Dilivery Contents

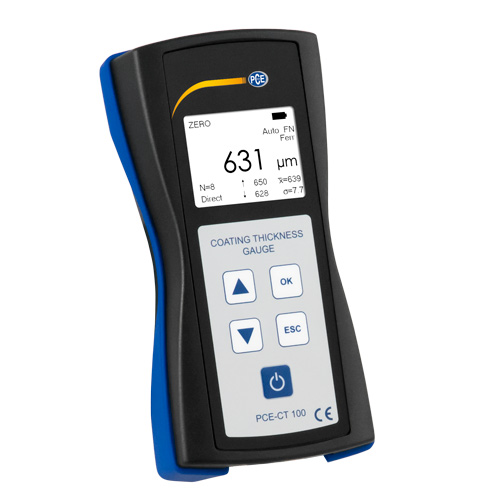

1 x PCE-CT 100 dry film thickness (DFT) meter
3 x 1.5 V AA batteries
1 x USB cable
1 x PC-compatible software
1 x factory calibration certificate according to ISO 9001
1 x user manual
1 x carrying case
