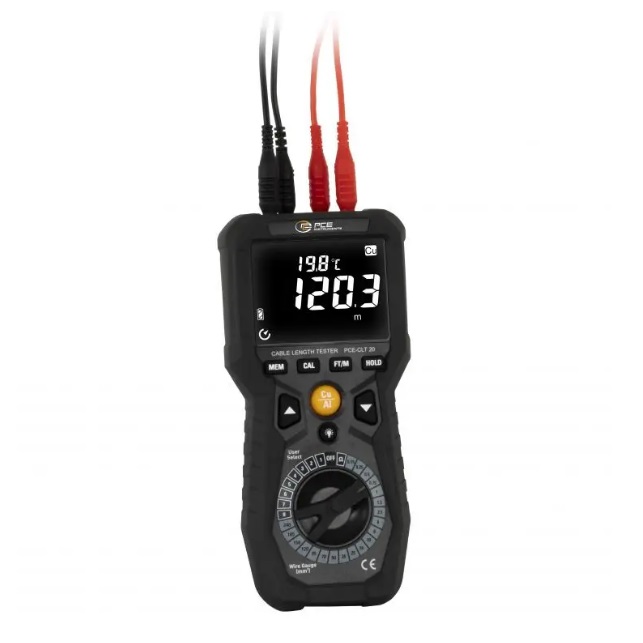

PCE PCE-CLT 20 Cable Locator (0.1 m~30 km)

- Length:

Measurement Range: 0.1 m ... +1999.9 m

Resolution: 0.1 m

Accuracy: ±(1 % of reading + 1 m)

- Length:

Measurement Range: +1999.9 km ... +19.99 km

Resolution: 1 m

Accuracy: ±(1 % of reading + 0.05 km)

- Length:

Measurement Range: +19.9 km ... +30 km

Resolution: 0.01 km

Accuracy: ±(1.2 % of reading + 0.10 km)

- Resistance:

Measurement Range: 0.1 mΩ ... +1999.9 mΩ

Resolution: 0.1 mΩ

Accuracy: ±(1 % of reading + 3 Digits)

- Resistance:

Measurement Range: +1999.9 Ω ... +19,999 Ω

Resolution: 0.001 Ω

Accuracy: ±(1 % of reading + 5 mΩ)

- Resistance:

Measurement Range: +19,999 Ω ... +199,99 Ω

Resolution: 0.01 Ω

Accuracy: ±(1 % of reading + 50 mΩ)

- Resistance:

Measurement Range: +199.99 Ω ... +1999.9 Ω

Resolution: 0.1 Ω

Accuracy: ±(1 % of reading + 6 Digits)

- Temperature:

Measurement Range: -5 °C ... +50 °C

Resolution: 0.1 °C

Accuracy: ±(2 % + 1.8°C)

- General Technical Data:

Units: °C, °F, m, km, ft

Display Type: LCD with backlight

Automatic Shutdown: 15 min.

Automatic Shutdown Disableable: No

Cable Length: 1.2 m

Overload Protection: max. 60 V

Menu Language: English

Protection Class (Device): IP30

Weight: 460 g

Dimensions (L x W x H): 213 x 100 x 65 mm / 8,3 x 3,9 x 2,5 in

Operating Conditions: 0 ... 40 °C , 80 % r.H

Storage Conditions: -20 ... 60 °C , 80 % r.H

- Batteries and Accumulators:

Type: Alkaline-Manganese

Voltage: 1.5 V

SystemPrimary: Disposable Battery

Number: 6

Weight: 0.21 kg

Weight Class: Class 02 (16 - 30g)

- Delivery scope:

1 x Cable Fault Meter PCE-CLT 20

2 x Measurement Cables with Kelvin Clamps

6 x AA 1.5V Batteries

1 x User Manual

1 x Carrying Case
