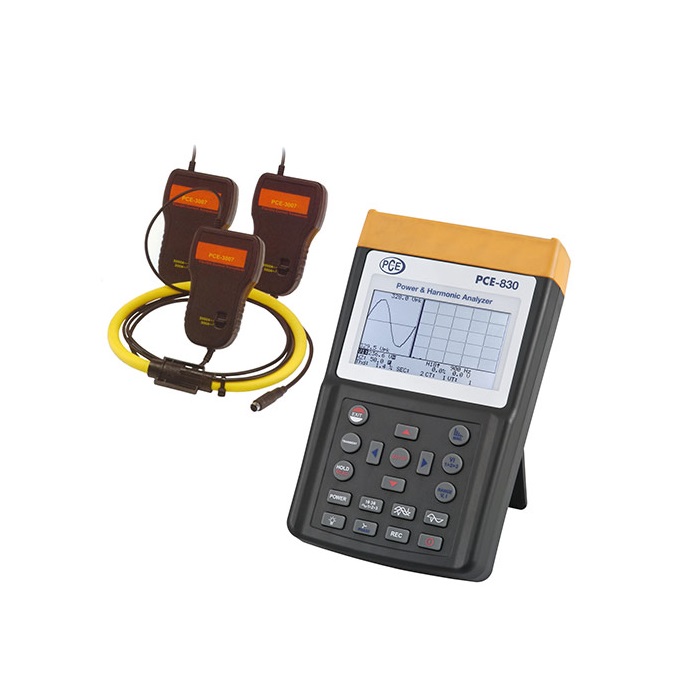

PCE 3007 Current Clamp Set

Measurement values: Measurement ranges / resolution / accuracy

PCE-830 + PCE-3007

Watts AC (50 Hz or 60 Hz, PF 0.5 up ~ 1):

+ 10.0 W ~ 999.9 W / 0.1 W / ±1% of measurement range

+ 1.000 kW ~ 9.999 kW / 0.001 kW / ±1% of measurement range

+ 10.00 kW ~ 99.99 kW / 0.01 kW / ±1% of measurement range

+ 100.0 kW ~ 999.9 kW / 0.1 kW / ±1% of measurement range

+ 1000 kW ~ 9999 kW / 1 kW / ±1% of measurement range

PCE-830 + PCE-3007

Current AC (50 Hz or 60 Hz, auto range select, TRMS)

+ 0 ~ 300 A / 0.1 A / ±1.0% of measurement range

+ 300.0 A ~ 999.9 A / 0.1 A / ±1.0% of measurement range

+ 1000 A ~ 3000 A / 1 A / ±1.0% of measurement range

Voltage AC (50 Hz or 60 Hz, TRMS)

+ 20.0 V ~ 500.0 V / 0.1 V / ±0.5% ±5 digits (measure between phase and neutral)

+ 20.0 V ~ 600.0 V / 0.1 V / ±0.5% ±5 digits (measure between phase and neutral)

Harmonic distortion of AC voltage

+ 1º ~ 20º / 0.1% / ±1.0%

+ 21º ~ 49º / 0.1% / 4% of reading ±2.0%

+ 50º ~ 99º / 0.1% / 6% of reading ±2.0%

Maximum measurement of AC voltage and current: 50 Hz / 19 µS / ±5% ±30 digits

60 Hz / 16 µS / ±5% ±30 digits

Peak value measurement of AC voltage and current: 1.00 ~ 99.99 / 0.01 / ±5% ±30 digits

Frequency range in automatic mode: 45 Hz ~ 65 Hz / 0.1 Hz / 0.1 Hz

Memory: 512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors

Port: USB

Software and cable: included, for Windows 2000, XP, ME

Display: backlit LCD with dot matrix

Power: 8 AA batteries (Mignon)

Dimensions: 257 mm x 155 mm x 57 mm / 10.1 in x 6.1 in x 2.2 in

Weight: 1.16 kg / 2.56 lbs

Delivery Scope:

1 x PCE-830-3 Clamp Meter

3 x Amp clamps - PCE-3007

4 x Alligator clips

4 x Safety test lines (3 m / 3.3 ft long)

8 x Batteries

1 x Mains adaptor

1 x Carrying case

1 x USB cable software

1 x User's manual
