PCE 009-ICA Hot-Wire Anemometer Data Logger

Specifications

Measurement range with corresponding unit:

- m/s: 0.2 ... 20.0

- °C / °F: 0.0 ... 50.0 / 32 ... 122°F (sensor)

Calculation of volume of air current: 0 ... 36,000

- m³/min (CCM)

Resolution

- Air velocity: 0.1m/s (for remaining units, up to ft/min = 1.0)

- Air temperature: 0.1°C / 32.2°F

- Volume of air current (CCM): 0.001 to 1m³/min (depending on reading)

Accuracy

- Air velocity: ±1% (of measurement range) or ±5% of the corresponding value

- Air temperature: ±0.8°C / 33.4°F

- Volume of air current (CCM): Calculated value

Measuring quote:From 2 sec. to 9 hours

Internal memory:16.000 values

Thermal sensor

- Telescopic thermistor

- Hot wire sensor

- Contracted length 280 mm / 11 in

- Extended length 940 mm / 37 in

- Maximum diameter 12 mm / .5 in

- Minimum diameter 8 mm / .3 in (at the leading end)

Interface:RS-232

Software / RS-232 cable:

- Included, compatible with Windows 95, 98, 2000, XP, for data transfer

- Data can also be exported to MS Excel

DisplayLarge: 58 x 34 mm / 2.3 x 1.4 in LCD

Operating conditionsDevice: 0°C ... 40°C / 32 ... 104°F <80% r.h.

Thermal sensor: 0°C ... 50°C / 32 ... 122°F <80% r.h.

Power:4 batteries (1.5V) (or by way of an optional mains adaptor of 9V)

Auto shut-offYes, 5 minutes to protect battery power

Dimensions:

Device: 203 x 76 x 38 mm / 8 x 3 x 1.5 in

Thermal sensor: 8 mm / .3 in diameter x 940 mm / 37 in maximum extended length (only 280 mm / 11 in when contracted)

Enclosure:ABS plastic

Weight:515 g / 1.1 lbs

Dilivery Contents

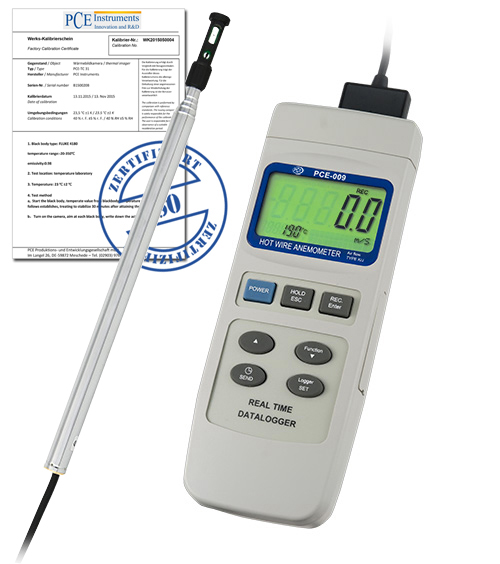

-PCE-009 Hot-wire anemometer data logger with thermal sensor and 1.5 m / 4.9 ft connector cable

-RS-232 cable

-Software

-4 batteries

-Carrying case

-User's manual

-ISO calibration certificate
