- Rated Power (VA): 6000
- Output Form: 1Ø/2Ø
- Output Voltage Max (l-n/l-l):
Direct: 132/264
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 198/396; 264/528; 330/600
- Current (Arms):
Direct: 48/16
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 32/10.6; 24/8; 19.2/6.4
- Frequency Range:
Direct: 15~1200
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~1200; 45~1200; 45~1200
- Input Power: 3Ø 47-65Hz
- Unit Height (In/mm/U):

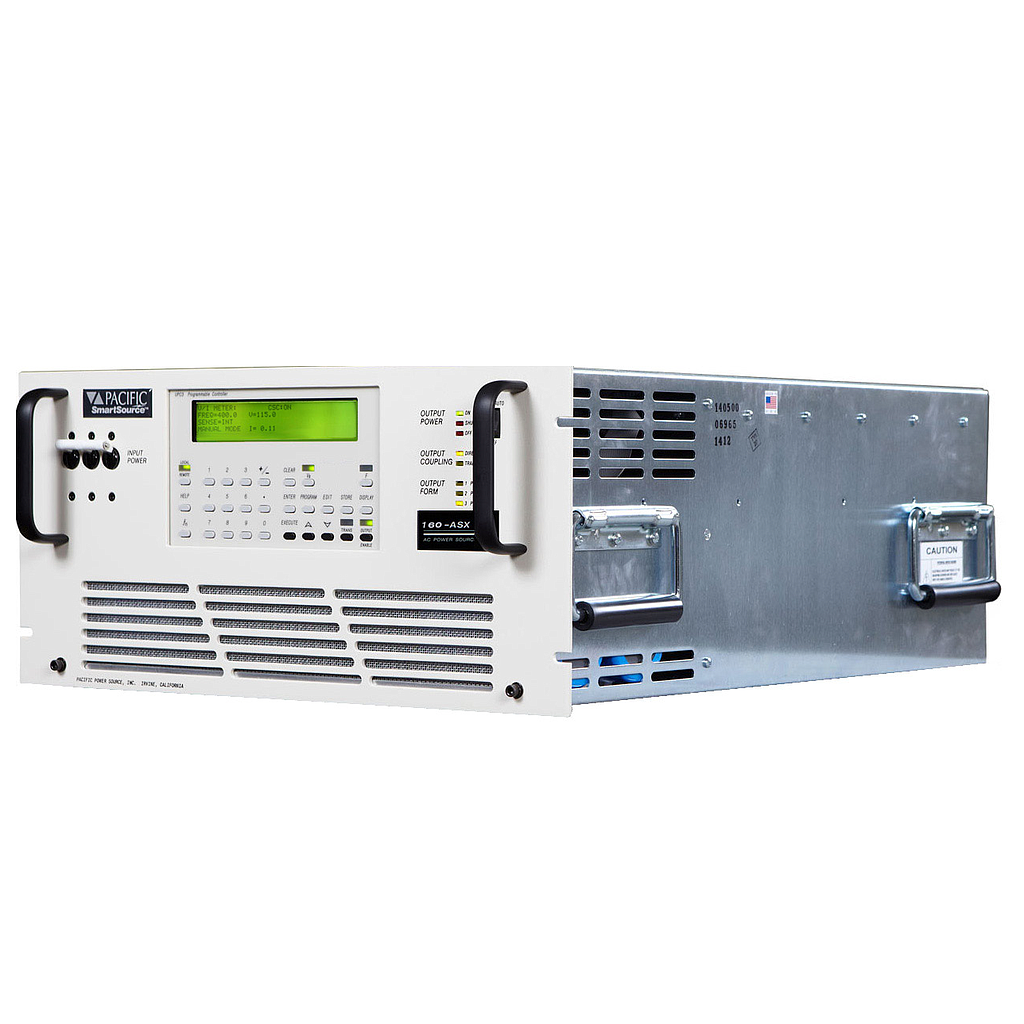

160ASX: 8.75/222/5U
Transformer Module: 5.25/134/3U
- Unit Weight (Lbs/Kg):
160ASX: 120/54.5 (Lbs/Kg)
Transformer Module: 120/54.5 (Lbs/Kg)
- Output Frequency:
15~1200 Hz Direct Coupled
45~1200 Hz Transformer Coupled
- Line Regulation: 0.1% max for a ±10% line change
- Load Regulation (Direct coupled):
0.25% 15 to 400 Hz.,
0.50% 400 to 1,200 Hz.
2 to 5% depending on ratio
Improves to less than 0.1% with external sense and CSC enabled
- Output Distortion:
0.25% THDAVG 15~200 Hz
1.25% THDAVG 200~1200 Hz
- Ripple and Noise: -66dB
- Response Time: 60 msec typ.
