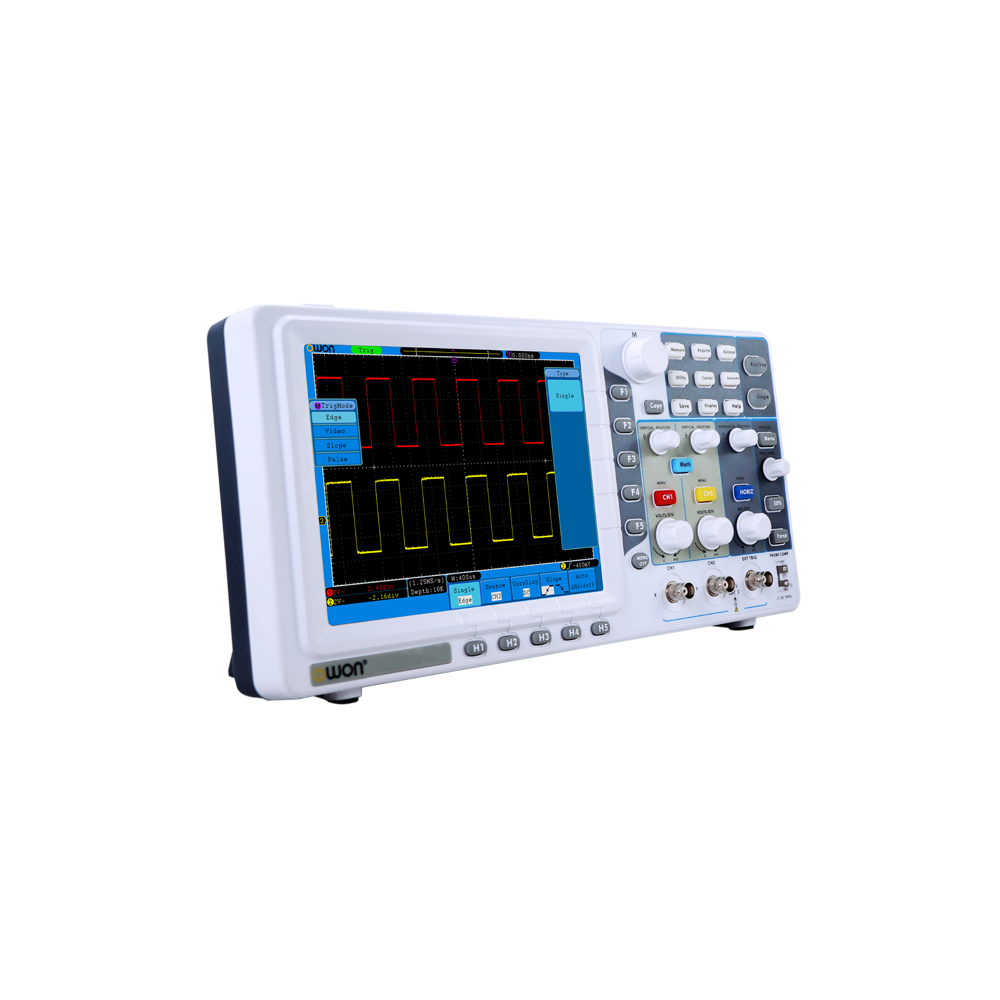

Bandwidth: 70MHz
Sample Rate (real time): 1GS/s
Horizontal Scale (s/div): 2ns/div～100s/div, step by 1~2~5
Channel: 2 + 1 (external)
Display: 8" color LCD, 800 × 600 pixels
Record Length: 1M
Vertical Resolution (A/D): 8 bits (2 Channels simultaneously)
Vertical Sensitivity: 2mV/div～10V/div (at input)
Trigger Type: Edge, Pulse, Video, Slope, and Alternate
Trigger Mode: Auto, Normal, and Single
Waveform Math: ＋, －, ×, ÷, invert, FFT
Communication Interface: USB host, USB device, Pass / Fail, LAN, and VGA (optional)
Battery: not supported
Dimension (W×H×D): 348 × 170 × 78 (mm)
Weight (without package): 1.50 kg
