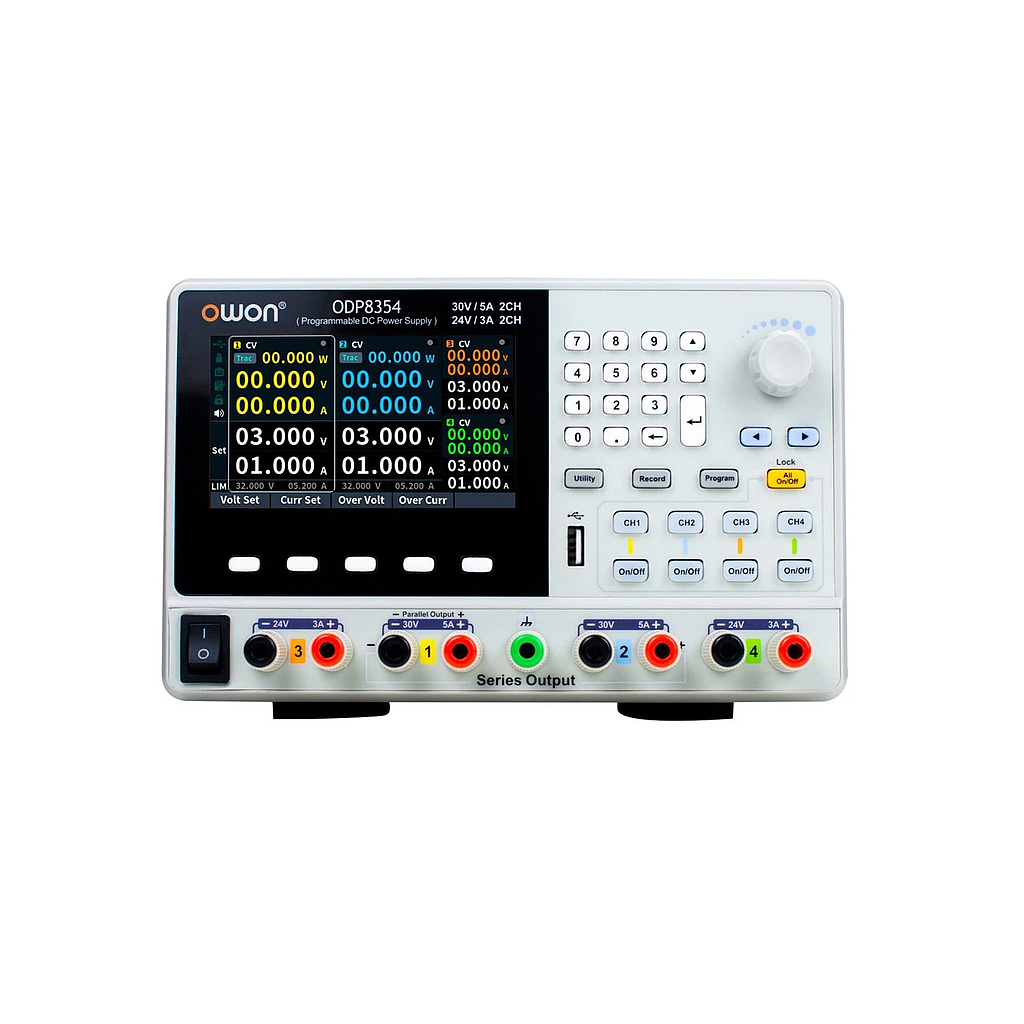

Output Ratings: 4 (independent controllable channel)
Voltage / Current:
CH1: 32V/5A, Maximum 102W constant power output;
CH2: 32V/5A, Maximum 102W constant power output;
CH3: 24V/3A, Maximum 24W constant power output;
CH4: 24V/3A, Maximum 24W constant power output
CH1,CH2 Parallel Voltage / Current: 64V/5A, 204W constant power output
CH1,CH2 Series Voltage / Current: 32V/10A, 204W constant power output
Max out put power: 240W
Settings Resolution: 1mV/1mA
Read Back Resolution: 1mV/1mA
Settings Accuracy (Within 12 months) (25℃±5℃):
Voltage:
Independent：±(0.03% of reading+10) mV;
Parallel：±(0.03% of reading+10) mV;
Series：±(0.06% of reading+20) mV
Current:
Independent：±(0.1% of reading+5) mA;
Parallel：±(0.2% of reading+20) mA;
Series：±(0.1% of reading+5) mA
Read Back Accuracy (25℃±5℃):
Voltage:
Independent：±(0.03% of reading+10) mV;
Parallel：±(0.03% of reading+10)mV;
Series：±(0.06% of reading+20) mV
Current:
Independent：±(0.1% of reading+5) mA;
Parallel：±(0.2% of reading+10) mA;
Series：±(0.1% of reading+5) mA
Noise and Ripple* (20Hz-20MHz):
Voltage:
Independent：≤5mVp-p;
Parallel：≤5mVp-p;
Series：≤10mVp-p
Voltage: ≤1mVrms
Current:
Independent：≤5mArms;
Parallel：≤10mArms;
Series：≤5mArms
Load Regulation:
Voltage:
Independent：≤0.01%+5mV;
Parallel：≤0.01%+50mV;
Series：≤0.01%+50mV
Voltage Regulation:
Voltage: ≤0.01%+3mV
Current: ≤0.01%+3mA
Read Back Temperature Coefficient:
Voltage: 100ppm/℃
Current: 200ppm/℃
Programmable output:
Storage: 1M points; 100 groups
Time setting: Second
Data Record Function: 10k groups of data (voltage, current, power)
Working temperature: 0-40℃
Ports: USB Host, USB Device, RS232, LAN, supports USB TMC protocol
Display: 4.3 inch IPS LCD
Dimension: 290mm(W)*130mm(H)*212mm(D)
Device weight: ≈9kg
