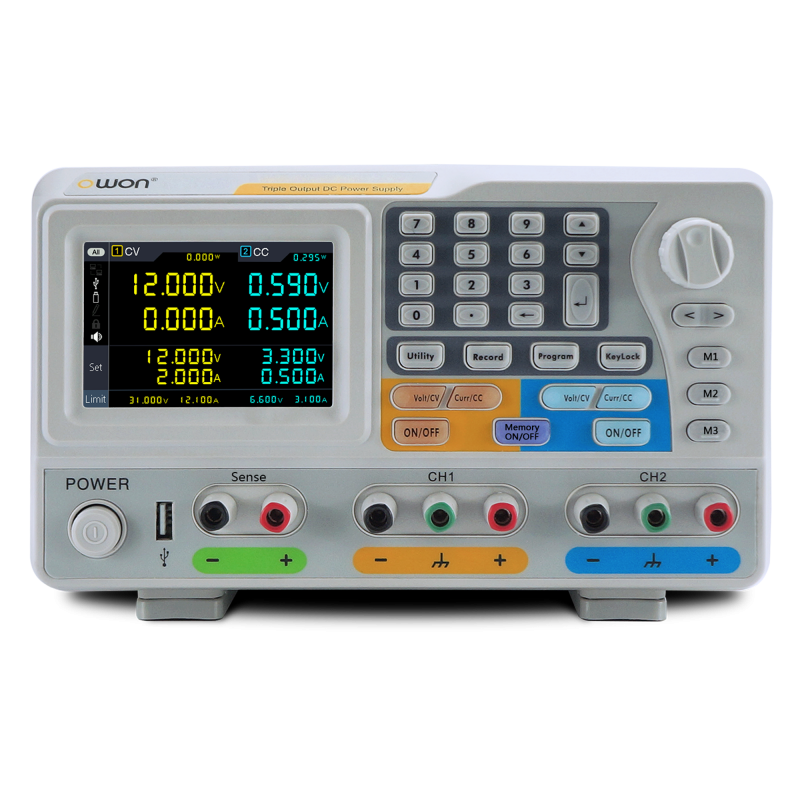

Channel 3 independent controllable channels
Max output Power 198W
Output Range
0-30V / 6A x 2-CH
0-6V / 3A
Load Regulation
Voltage ≤0.01% + 3mV
Current ≤0.01%+3mA
Line Regulation
Voltage ≤0.01%+3mV
Current ≤0.01%+3mA
Settings Resolution
Voltage 1mV
Current 1mA
Read Back Resolution
Voltage 1mV
Current 1mA
Settings Accuracy
(within 12 months)
(25℃ ± 5℃) Voltage ≤0.03%+10mV Current ≤0.1%+8mA ≤0.1%+5mA Read Back Accuracy
(25℃ ± 5℃) Voltage ≤0.03%+10mV Current ≤0.1%+8mA ≤0.1%+5mA Noise and Ripple
(20Hz - 20MHz) Voltage（Vp-p） ≤4mVp-p ≤3mVp-p
Voltage（rms） ≤1mVrms ≤1mVrms
Current（rms） ≤5mArms ≤4mArms
Output Temperature Coefficient (0℃ - 40℃)
Voltage ≤0.03%+10mV
Current ≤0.1%+5mA
Read Back Temperature Coefficient Voltage ≤0.03%+10mV
Current ≤0.1%+5mA
Parallel Settings Accuracy
Voltage ≤0.02%+5mV
Current ≤0.1%+30mA
Programmable Output Storage 10 groups
Time Setting Second Data-logging Function
(capacity) 10K groups of voltage / current / power data Working
Temperature 0 - 40℃ Communication Interface USB, RS232, and LAN
