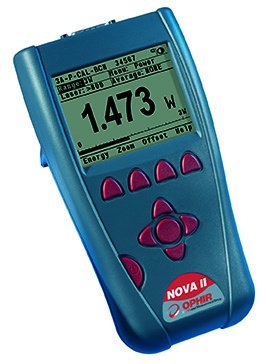

Power Meter: High legibility 320 x 240 pixel graphics LCD with switchable electroluminescent backlight. Large 18mmdigits. High resolution analog needle also can be chosen.
Features: Many screen features including power with bar graph, energy, average, exposure, frequency, graphs,scaling, special units, and more. Complete on line context sensitive help screens.
Outputs: USB, RS232 and 1, 2, 5 and 10 volt full scale analog output.
Case: Molded high impact plastic with two level kickstand.
Size: Folds to a compact 208mm Lx 110mm Wx 43mm H
Battery: Rechargeable NiMH batteries with typically 18 hours between charges. The charger can be ordered from your local distributor. The charger also functions as an AC adapter.
Data Handling: Data can be viewed on board or transmitted to PC:
On Board: Non-volatile storage of up to 54000 data points in up to 10 files.
Max onboard data logging rate 4000 (a) points/s and Max data logging rate to the PC 2000 (a) points/s.
Sensor Features: Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors (b).
Program Features: Preferred startup configuration can be set by user. User can recalibrate power, energy, response time and zero offset.
