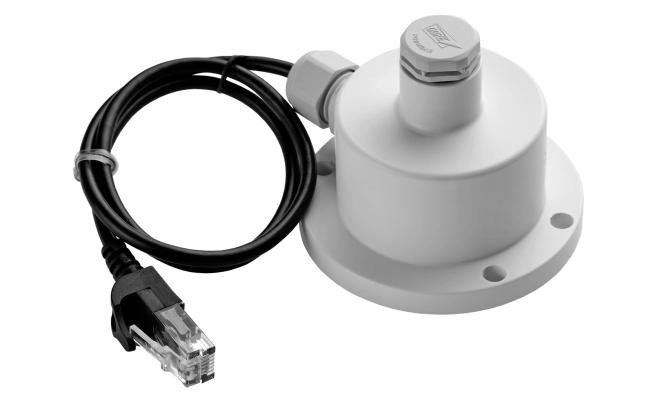

Onset S-BPB-CM50 Smart Barometric Pressure Sensor (660~1070 mbar)

Measurement range: 660 to 1070 mbar (19.47 to 31.55 in. Hg)

Accuracy: ±3.0 mbar (0.088 in. Hg) over full pressure range at 25°C (77°F); maximum error of ±5.0 mbar (0.148 in. Hg) over -40° to 70°C (-40° to 158°F)

Resolution: 0.1 mbar (.003 in. Hg)

Operating temperature range: -40° to 70°C (-40° to 158°F)

Dimensions: 6.4 cm (2.5 in) diameter x 5.1 cm (2 in) height

Weight: 96 gm (3.4 oz)

Bits per sample: 12

Number of data channels: 1

Cable length available: 50 cm (20 in)

Length of Smart Sensor network cable: 50 cm (20 in)

Items Included:

Two cable ties

Two self-tapping screws

A weatherproof smart sensor with a measurement range of 660 mb to 1070 mb (19.47 to 31.55 inHg); can perform measurement averaging to obtain the highest accuracy. The operating temperature range for this sensor is -40° to 70°C (-40° to 158°F). Compatible with the HOBO Remote Monitoring System and HOBO Micro Station, this sensor is mounted outside the station enclosure.
