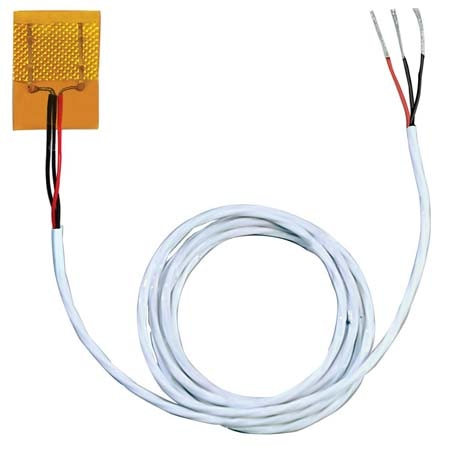

OMEGA SRTD-2 Cement-On Polyimide Fast Response RTD Surface Sensors (± 0.25 %, Stripped Leads, 100 Ω, 260 °C)

Accuracy: ± 0.25 %

Mounting: DIN Platinum

Stability: <0.2°C

Insulation: PFA

Cable Length: 36 in

Sensor Width: 15.7 mm

Response Time: <200 ms

Sensor Height: 0.64 mm

Sensor Length: 25 mm

Cable Diameter: 0.06 in

Stability Note: <0.2°C drift per year at rated service and proper mounting

Number of Wires: 3

Bend Radius, Min: 9.5 mm

Nominal Resistance: 100 Ω

Response Time Note: <200 milliseconds lag on metal surfaces

Self Heating Effect: 0.33 °C / mW

Electrical Connection: Stripped Leads

Insulation Resistance: 50 MΩ

Temperature Coefficient: 0.00385Ω/Ω/°C

Temperature Sensor Type: RTD

Process Temperature, Max: 260 °C

Process Temperature, Min: -200 °C

Insulation Resistance Note: 50 M Ω minimum at 50 Vdc ribbon cable. 100G Ohm minimum at 500 Vdc, round twisted cable (dry conditions at room temperature).

Temperature Coefficient Note: α=0.00385Ω/Ω/°C
