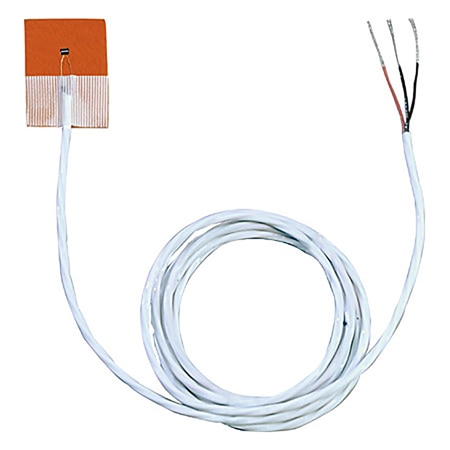

OMEGA SA1-RTD-B-TA3F Self-Adhesive Polyimide Fast Response RTD Surface Sensors, Class B Accuracy (Class B, TA3 Female Connector, 100 Ω, 260 °C)

Accuracy: Class B

Mounting: Class DIN Platinum

Pack Size: 3

Insulation: PFA

Wire Gauge: 26 AWG

Cable Length: 40 in

Accuracy Note: 100 Ω Thin Film DIN Platinum Class “B” (± 0.12% at 0°C) Accuracy Standard

Response Time: In Water Immersion : <0.9 sec ; On a Hot Plate: <2 sec

Number of Wires: 3

Nominal Resistance: 100 Ω

Electrical Connection: TA3 Female Connector

Temperature Coefficient: 0.00385 Ω/Ω/°C

Temperature Sensor Type: RTD

Process Temperature, Max: 260 °C

Process Temperature, Min: -73 °C

Temperature Coefficient Note: α = 0.00385 Ω/Ω/°C

Datasheet
