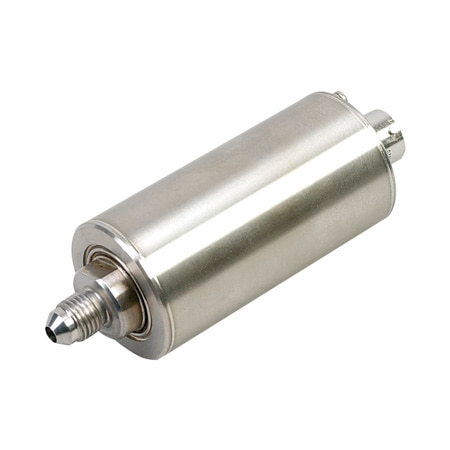

Shock: Qualification level of 100 g, 11 ms, half sine wave without damage
Weight: 200 g
Accuracy: ± 0.1 %
Applications: Aeronautics and Aerospace, Automotive, Fluid Measurement and Control, Hydraulic and Pneumatic Systems, Industrial and Manufacturing, Laboratories and Scientific
Accuracy Note: (Combined Linearity, Hysteresis and Repeatability):± 0.10% FS (BFSL) <1000 psi
Output Signal: Millivolt
Pressure Type: Absolute
Pressure, Max: 1000 psi
Pressure, Min: 0 psi
Accuracy Class: < 0.1%
Burst Pressure: 3x Full Scale
Proof Pressure: 2x Full Scale
Supply Voltage: 10 Vdc
Sensing Element: 4-active-arm Strain Gauge Bridge
Input Resistance: None
Mating Connector: MIL-26482-I 10-6S
Electrical Output: 4 to 20 mA
Materials, Wetted: 17-4 Stainless Steel
Natural frequency: 5 kHz for 1 bar (15 psi), increasing logarithmically to 50 kHz for 5000 psi
Output Resistance: None
Burst Pressure Note: 3 times rated pressure
Proof Pressure Note: 2 times rated pressure or 15,000 psi, whichever is less, will not cause changes in performance beyond the specified tolerance
Loop Resistance, Max: 50 (V – 10) Ω max, where V is supply voltage (40 Vdc max)
Sensing Element Note: 4-active-arm bridge using sputter-deposited thin-film elements
Additional Features 1: None
Electrical Connection: MIL-26482-I 10-6P
Insulation Resistance: 100 MΩ
Vibration Sensitivity: 0.04% FS/g
electrical-connection: MIL-26482-I 10-6P
Electrical Output Note: 4 to 20 mA ± 0.8 mA adj
Electrostatic Discharge: Protected to 15 kV
Process Connection Size: 1/8 in
Process Connection Type: NPT Female
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
Vibration Sensitivity Note: At 20 g peak sinusoidal vibration from 10 to 2000 Hz(1⁄2” D.A.), the output shall not exceed 0.04% FS/g for 15 psi range, decreasing to 0.003% FS/g for 1000 psi and above
Compensated Temperature, Max: 82 °C
Compensated Temperature, Min: -18 °C
Thermal Effect on Span error, Max: ± 0.02% FS/°F
Thermal Effect on Zero error, Max: ± 0.02% FS/°F, ± 0.02% FS/°F
