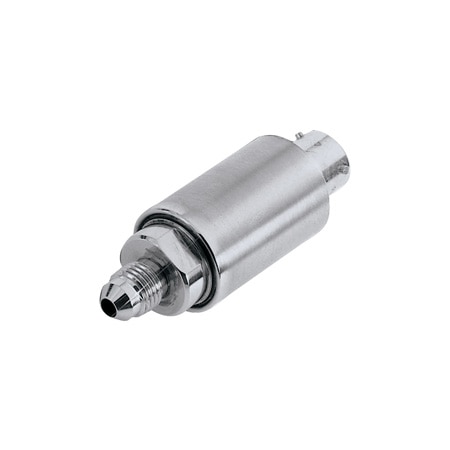

MTBF: 100,000 hours
Shock: Qualification level of 100 g, 11 ms, half sine wave without damage
Weight: 145 g
Accuracy: ± 0.15 %
Stability: ± 0.1%
Vibration: At 35 g peak sinusoidal vibration from 10 Hz to 2000 Hz (1⁄2” D.A.), the output shall not exceed 0.04% FSO/g for 15 psi range to 0.003% FSO/g for 1000 psi and above
Applications: Aeronautics and Aerospace, Automotive, Specialty Equipment
Accuracy Note: Combined linearity, hysteresis and nonrepeatability: ± 0.10% FSO 0 to 15 through 0 to 999 psi; ± 0.15% FSO 1000 psi and above
Output Signal: Millivolt
Pressure Note: 2 times rated pressure or 15,000 psi, whichever is less, will not cause changes in performance beyond the specified tolerances
Pressure Type: Gauge
Pressure, Max: 1500 psi
Pressure, Min: 0 psi
Accuracy Class: 0.1% to 0.25%
Burst Pressure: 3x Full Scale
Stability Note: Calibration Stability: ± 0.1% for 18 months
Supply Voltage: 10 Vdc
Sensing Element: 4-active-arm Strain Gauge Bridge
Input Resistance: 2500 Ω typical, 800 Ω minimum, 3000 Ω maximum
Mating Connector: MIL-26482-I 10-6S
Electrical Output: 30 mV/V
Materials, Wetted: 15-5 PH Stainless Steel, 17-4 Stainless Steel
Output Resistance: 2500 Ω typical,800 Ω minimum, 3300 Ω maximum; for 350 Ω bridge,see Custom Configurations
Relative Humidity: Qualified per MIL-STD-810
Supply Power Note: Electrostatic Discharge: Protected to 15 kV
Burst Pressure Note: 3 times rated pressure or 20,000 psi, whichever is less, will not cause rupture of the pressure containment cavity
Sensing Element Note: 4-active-arm bridge using sputter-deposited thin-film elements
Electrical Connection: MIL-26482-I 10-6P
Insulation Resistance: 500 MΩ
Electrical Output Note: 30 mV typical, 26 mV minimum
Process Connection Size: 7/16 in
Process Connection Type: AS5205/MS33656-4 Male
Operating Temperature, Max: 150 °C
Operating Temperature, Min: -54 °C
Compensated Temperature, Max: 121 °C
Compensated Temperature, Min: -54 °C
Thermal Effect on Span error, Max: ± 0.005% FSO/°F
Thermal Effect on Zero error, Max: ± 0.005% FSO/°F, ± 0.005% FSO/°F
