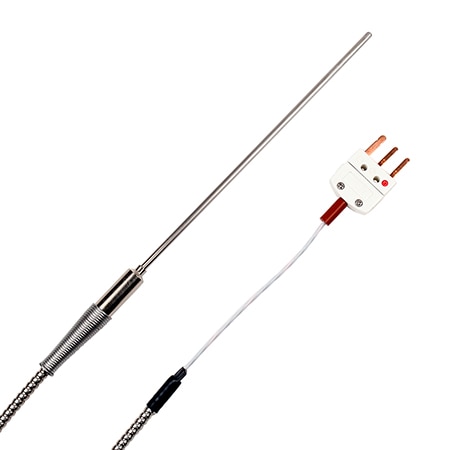

OMEGA PR-10H-3-100-1/4-12-BX RTD Probe with Insulated Wire and BX Armored Cable (Stripped Leads, 450 °C, Class A)

Shock: IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day

Accuracy: Class A

Vibration: IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;10 sweep cycles; acceleration 5g (15 probes tested together) Duration: 1 day

Insulation: PFA with Armored Cable

Probe Type: RTD Probe with Insulated Wire and BX Armored Cable

Wire Gauge: 26 AWG

Cable Length: 40 in

Probe Length: 12 in

probe-length: 12 in

Accuracy Note: Class A from -50 to 300°C (-58 to 572°F); or else Class B

Probe Diameter: 0.25 in

Number of Wires: 3

Sheath Material: 316 Stainless Steel

Enclosure Ratings: IP67

Nominal Resistance: 100 Ω

Response Time, Max: 10.6 sec

Electrical Connection: Stripped Leads

Temperature Coefficient: 0.00385Ω/Ω/°C

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 450 °C

Process Temperature, Min: -50 °C

Temperature Coefficient Note: α=0.00385Ω/Ω/°C

Nominal Resistance/Curve Note: 100 Ω and 1000 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard

Wire Termination Temperature, Max: 250 °C
