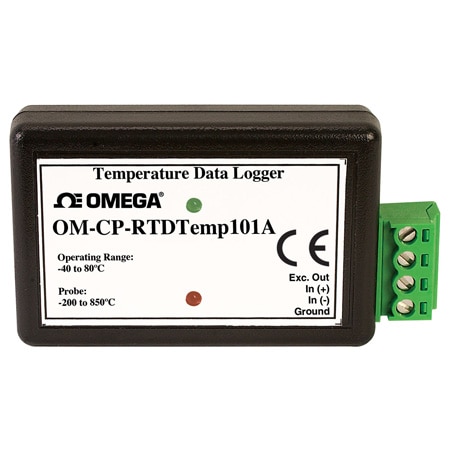

OMEGA OM-CP-RTDTEMP101A Precision RTD Temperature Data Logger, Part of the NOMAD® Family (Temperature, USB)

Width: 56 mm

Height: 16 mm

Length: 36 mm

Memory: 1340000

Weight: 24 g

Enclosure: Aluminium

Materials: ABS

Stop Modes: Adjustable Delay Stop, Manual Through Software

Calibration: Digital calibration through software

Form factor: Benchtop

Memory Note: 1,340,000 readings; software configurable memory wrap 666,000 readings in multiple start/stop mode

Samples,Max: 670000

Start Modes: Adjustable Delay Start, Immediate Start, Push-button

Battery life: up to 10 yr

Memory Modes: Yes

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month

Data Interface: USB

LED Indicators: Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode ;Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition

Waterbox Depth: 39 mm

Waterbox Width: 148 mm

Waterbox Height: 74 mm

Measurement Type: Temperature

Supply Power Type: Battery

Nominal Resistance: 18 - 400 Ω

Sampling Rate Note: 1 reading every second to 1 every 24 hours.

Data Interface Note: USB (interface cable required); 115,200 baud

Real Time Recording: The device may be used with PC to monitor and record data in real-time

Battery Size and Type: Li-ion

Electrical Connection: Screw Terminal

Number of Measurements: 1

Temperature Resolution: 0.001 °C

Temperature Sensor Type: RTD

Process Temperature, Max: 850 °C

Process Temperature, Min: -200 °C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C
