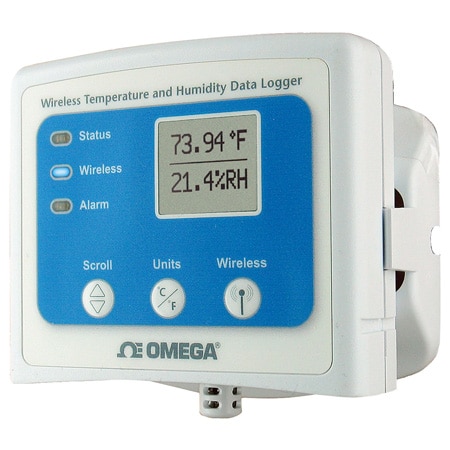

OMEGA OM-CP-RFRHTEMP2000A Wireless Temperature and Humidity Data Logger with Display (Humidity, Temperature, USB)

Width: 88.9 mm

Height: 24.1 mm

Length: 76.2 mm

Memory: 16128

Weight: 116 g

Alarm Delay: Programmable time delay

Calibration: Digital calibration through software

Form factor: Handheld/Wall Mount

Samples,Max: 16128

Start Modes: Immediate Start

form-factor: Handheld/Wall Mount

Battery life: up to 3 yr

Display Type: LCD

Memory Modes: Yes

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month

Wireless Band: 2.405 - 2.48 GHz

Data Interface: USB

LED Indicators: • Green LED blinks every 5 seconds to indicate unit is logging • Blue LED blinks every 15 seconds to indicate unit is in wireless mode • Red LED blinks every 1 second to indicate alarm condition.

Measurement Type: Humidity, Temperature

Supply Power Type: Battery

Operating Humidity: 0 to 95% RH

Response Time Note: 2 - 63% min

Sampling Rate Note: One Reading every second up to one every 24 hours

Data Interface Note: USB to mini USB,250,000 baud for standalone operation or OM-CP-RFC1000-EXT required for wireless operation.

Additional Features 1: Audible and LED Alarm Indicators

Battery Size and Type: Li-ion, 9V

Number of Measurements: 2

Relative Humidity, Max: 0.95

Relative Humidity, Min: 0%

Software Compatibility: XP SP3/Vista/7 and 8 (32-bit and 64-bit)

Display Measuring Units: °C, °F, %RH

Process Temperature, Max: 60 °C

Process Temperature, Min: -20 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Relative Humidity Resolution: 0.001

Wireless Receiver Sensitivity: -95 dBm

Internal Channel Response Time: 10 min

Internal Channel Calibrated Accuracy Note: ± 0.5°C (± 0.9°F),0 to 55°C(32 to 131°F)
