Shock: 50 g, 11 ms half sine (under test)
Weight: 285 g
Accuracy: ± 0.05 %
Bandwidth: DC to 1 kHz
Stability: ± 0.1%
Vibration: ± 20 g
Output Signal: Voltage
Pressure Type: Absolute
Pressure, Max: 1000 psi
Pressure, Min: 0 psi
Response Time: <1 ms
ADC Resolution: None
Burst Pressure: 3000 psi
Proof Pressure: 4x Full Scale up to 3000 psi
Stability Note: Long Term Stability (1-Year): ± 0.1% FS typical.
Supply Voltage: 15 to 30 Vdc
Pressure Cycles: 1 million, minimum

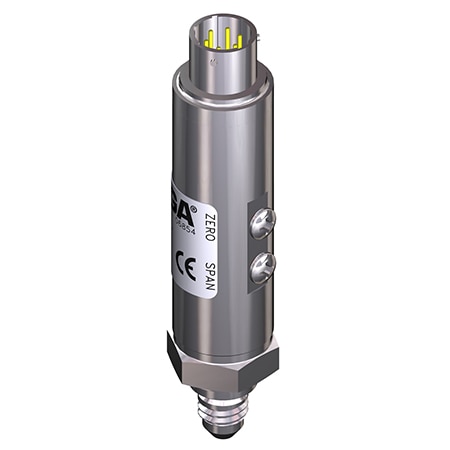

Trim Pot Access: O-ring sealed screws on side cover
Mating Connector: MIL-26482-I 10-6S
Electrical Output: 0 to 10 V
Enclosure Ratings: IP65
Materials, Wetted: 316L Stainless Steel
Supply Power Note: 15 to 30 Vdc @ 10 mA
Zero/Balance Error: ± 0.5% FS typical ± 1 max
Media Compatibility: Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
Electrical Connection: MIL-26482-I 10-6P
Insulation Resistance: 100 MΩ @ 50 Vdc
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Zero/Balance Error Note: ± 0.5% FS typical ± 1 max (for ranges ≤2.5 psi ± 1% typ. ± 2% max)
Operating Temperature, Max: 121 °C
Operating Temperature, Min: -45 °C
Compensated Temperature, Max: 60 °C
Compensated Temperature, Min: -7 °C
Span Setting Adjustable Range: ± 10% span
Zero Setting Adjustable Range: ± 10% span
Thermal Effect on Zero error, Max: ± 0.5% FS
