CMRR: 120 dB
Accuracy: 0.03 % FS
Polarity: Bipolar
Frequency: 50/60 Hz
Input Type: Thermocouple, RTD, Thermistor, Current, Voltage
Resolution: Temperature :1° /0.1° ; process : 10 µV

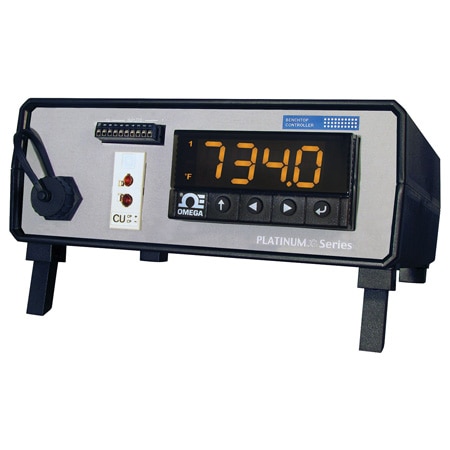

Form factor: Benchtop
Display Size: 21 mm (.82 in)
Display Type: 6 Digit LED
Configuration: Differential
Input Current: 4 to 20 mA, 0 to 24 mA
Input Voltage: -100 to 100 mV, -1 to 1 V, -10 to 10 Vdc
Output Detail: Optional Alarm 1 and 2 (Programmable) Type: Form “C” SPDT relays Operation: High/low, above/below, limited output to 30 Vrms, 60 Vdc max, band, latch/unlatch, normally open/ normally closed and process/deviation; front panel configurations Optional Analog Output (Programmable): Isolated, retransmission 0 to 10 Vdc or 0 to 20 mA, 500 Ω max (output 1 only). Accuracy is ± 1% of FS when following conditions are satisfied. 1) Input is not scaled below 1% of input FS 2) Analog output is not scaled below 3% of output FS
Step Response: 0.7 sec for 99.9%
A/D Conversion: 24-bit sigma delta
Control Output: 2 SPDT Relay
Data Interface: USB
Digital Filter: Programmable
Supply Voltage: 90 to 240 Vac
Measuring Range: Process Voltage: +100 mV, ±1, +10 Vdc;Process Current: Scalable within 0 to 24 mA;;Thermocouple:;Type J: -210 to 760°C;Type K: -270 to -160°C and -160 to 1372°C;Type T: -270 to -190°C and -190 to 400°C;Type E: -270 to -220°C and -220 to 1000°C;Type R: -50 to 40°C and 40 to 1768°C;Type S: -50 to 100°C and 100 to 1768°C;Type B: 100 to 640°C and 640 to 1820°C;Type C: 0 to 2320°C;Type N: -250 to -100°C and -100 to 1300°C;Type L: -200 to 900°C;;RTD:;Pt, 0.00385, 100, 500, 1000 Ω: -200 to 900°C;Pt, 0.00392, 100, 500, 1000 Ω: -200 to 850°C;;Thermistor:;2252 Ω: -40 to 120°C;5K Ω: -30 to 140°C;10K Ω: -20 to 150°C
RTD Input Range: 100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; 0.00385 or 0.00392 curve
Span Adjustment: 0.001 to 9999 counts
Thermal Effects: -9999 to +9999
Measurement Type: Temperature, Current, Voltage, Differential Voltage
Number of Inputs: 1
Decimal Selection: 0,001, 0,01, 0,1
Display Type Note: 4 or 6 digit, 9-segment LED, 21 mm (0.83") GREEN, AMBER, and RED programmable colors for process variable, set point and temperature units
Supply Power Type: AC
Thermocouple Type: J, K, T, E, R, S, B, C, N, L
Set Point Adjustment: Menu Configurable
Additional Features 1: Programmable 3 Color Display
Temperature Stability: RTD: 0.04°C/°C ;TC@ 25°C (77°F): 0.05°C/°C ;Cold Junction Compensation Process: 50 ppm/°C
Thermistor Input Range: 2252 Ω, 5K Ω, 10K Ω
