OMEGA LVV-111 Vertical Buoyancy Level Switch Sensors (25 psi, PVDF, 3/4 in, NPT Male) | EMIN.CO.ID

Level Switches
OMEGA LVV-111 Vertical Buoyancy Level Switch Sensors (25 psi, PVDF, 3/4 in, NPT Male)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

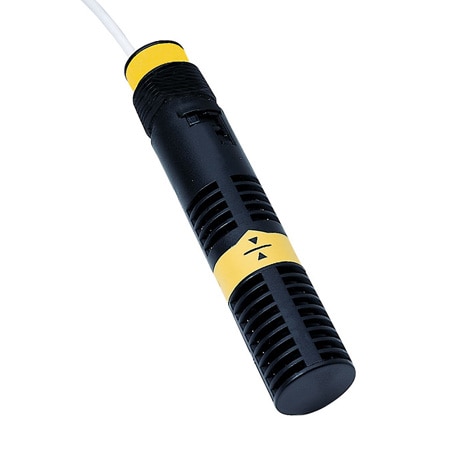

Product image

OMEGA LVV-111 Vertical Buoyancy Level Switch Sensors (25 psi, PVDF, 3/4 in, NPT Male)

ManufacturerOMEGA(View more products from this manufacturer)

ModelLVV-111

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Accuracy: ± 0.07 inH2O

Mounting: ± 20° Vertical

Insulation: Shield and PP or PFA Jacket

Wire Gauge: 22 AWG

Switch Type: SPDT NO/NC, Selectable

Cable Length: 500 ft

Probe Length: 4.5 in

Repeatability: ± 0.04 inH2O

Switch Rating: 15 VA @ 120 Vdc/Vac

Number of Wires: 3

Specific Gravity: 0.8 min

Switch Operation: Selectable Normally Open or Normally Closed

Enclosure Ratings: IP68, NEMA Type 6

Materials, Wetted: PVDF

Media Compatibility: Oil, Solvents, Water

Operating Pressure Note: 25 psi (2 bar) @ 25°C; derated @ 1.667 psi (0.113 bar) per °C above 25°C

Operating Pressure, Max: 25 psi

Process Connection Size: 3/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 90 °C

Operating Temperature, Min: -40 °C

Material Construction Option: PVDF

Datasheet
