OMEGA LVSW-701 316 SS Single Point Ultrasonic Liquid Level Switch (3/4 in, NPT Male) | EMIN.CO.ID

Level Switches
OMEGA LVSW-701 316 SS Single Point Ultrasonic Liquid Level Switch (3/4 in, NPT Male)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

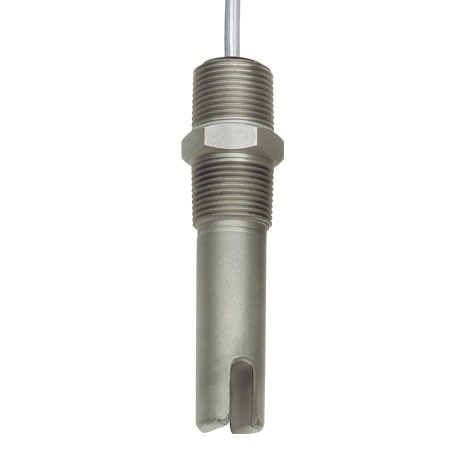

Product image

OMEGA LVSW-701 316 SS Single Point Ultrasonic Liquid Level Switch (3/4 in, NPT Male)

ManufacturerOMEGA(View more products from this manufacturer)

ModelLVSW-701

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Accuracy: ± 0.04 inH2O

Protection: Transient, reverse polarity

Time Delay: 0.5 sec

Switch Type: SPDT NO/NC, Selectable

Repeatability: ± 0.02 inH2O

Switch Rating: 1 A @ 60 or 120 Vac/Vdc

Supply Voltage: 6 to 24 Vdc

Leakage Current: < 50 µA

Materials, Wetted: 316 Stainless Steel

Supply Power Type: DC

Media Compatibility: Oil, Solvents, Water

Operating Pressure, Max: 1000 psi

Process Connection Size: 3/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 71 °C

Operating Temperature, Min: -29 °C

Datasheet
