Width: 38 mm
Height: 38 mm
Length: 197 mm
Weight: 2.3 kg
Linearity: ± 0.03%
Materials: 17-4 PH Stainless Steel, Stainless Steel
Base Plate: MBP-15
Force Type: Compression
Hysteresis: ± 0.02%
Cable Length: 15 ft
Overload, Max: 300% FS
Repeatability: ± 0.02%
Safe Overload: 150% FS

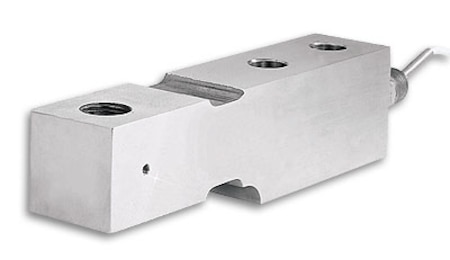

Load Cell Type: Bending Beam
Supply Voltage: 10 to 15 Vdc
Input Resistance: 360 Ω min
Electrical Output: 3 mV/V
Enclosure Ratings: IP65
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 5000 kgf
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in Compression)
Thermal Span Effect: ± 0.0018% FSO/°C
Thermal Zero Effect: ± 0.0018% FSO/°C
Electrical Connection: Cable
Full Scale Deflection: 0.02 in
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 82 °C
Operating Temperature, Min: -34 °C
