Height: 1 in
Linearity: ± 0.5%
Materials: 17-4 PH Stainless Steel
Force Type: Compression
Cable Length: 5 ft
Overload, Max: 300% FS
Repeatability: ± 0.1%
Safe Overload: 150% FS

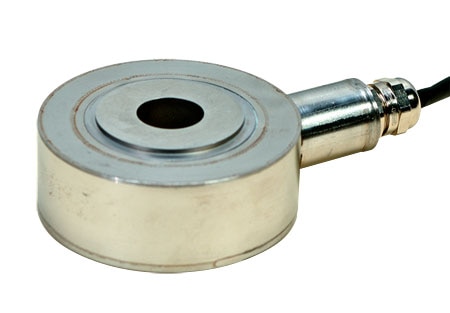

Load Cell Type: Through Hole
Outer Diameter: 3 in
Supply Voltage: 10 Vdc
Input Resistance: 360 Ω min
Electrical Output: 2 mV/V
Output Resistance: 350 ± 5 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Load Cell Capacity: 1000 lbF
Zero/Balance Error: ± 2%
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: ± 0.018% rdg/°C
Thermal Zero Effect: ± 0.009% FSO/°C
Electrical Connection: Cable
Full Scale Deflection: 0.003 in
Through Hole Dimension: 0.25 in
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 121 °C
Operating Temperature, Min: -54 °C
