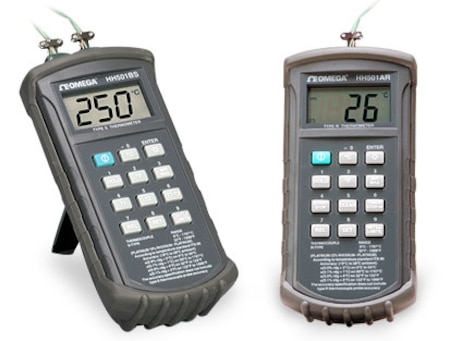

OMEGA HH501AS 1 Channel S Type Thermocouple High Temperature NEMA-4X Meter (3.5 Digit LCD)

Width: 92 mm

Height: 195 mm

Length: 53 mm

Weight: 365 g

Polarity: Automatic, positive implied, negative polarity indication.

Overrange: -OL is displayed.

Battery life: 100 hr

Display Type: 3.5 Digit LCD

Sampling Rate: 1 Hz (1 update/second)

Display Type Note: 3 1/2 digit liquid crystal display(LCD) with a maximum reading of 1999 Default Display Output : Zero : Automatic

Battery Indication: “+ -” is displayed when battery voltage drops below operating level

Number of Channels: 1

Temperature Accuracy: ± 5 °C

Additional Features 1: MIN/MAX/REL/HOLD Functions , Auto Power-Off

Electrical Connection: Miniature Male Thermocouple Connector

Temperature Resolution: 1 °C

Temperature Coefficient: 0.1 times the applicable accuracy specification per °C from 0 to 18°C and 28 to 50°C (32 to 64°F and 82 to 122°F)

Input Protection Voltage: 24 V

Storage Temperature Note: -20 to 60°C (-4°F to 140°F)<70% RH

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -20 °C

Differential Voltage, Max: 1 V

Temperature Accuracy Note: Stated accuracy at 23°C± 5°C,<75% relative humidity

Operating Temperature Note: 0°C to 50°C (32°F to 122°F)<80% RH

Input Protection Voltage Note: 24V dc or 24V ac rms maximum input voltage on any combination of input pins.

Measuring Temperature Range, Max: 1767 °C

Measuring Temperature Range, Min: 0 °C
