Accuracy: ± 0.1 °C (± 0.18 °F)
Input Type: Thermocouple

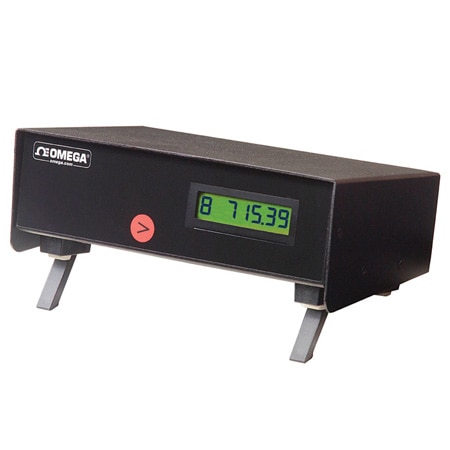

Form factor: Benchtop
Display Type: Single 5 Digit LCD
Accuracy Note: Thermocouples J, K, T, E, and N, better than ±0.1°C ±0.1% of range zero to span ±0.15% of range -100 to - 200°C (J, K, T, and E)
Sampling Rate: 0.5 Hz (2 seconds between updates)
Data Interface: USB
Supply Voltage: 6 Vdc
Terminal block: 8 x Pt100
User Interface: Front panel key for channel number or auto-scan selection; PC software for all other functions
Connection Note: 8 x thermocouple, mini connectors
Input Type Note: Thermocouples: R, S, and B, better than ±0.1°C ±0.15% of range Pt100 Range: Better than ±0.05°C ±0.1% of range
Measuring Range: Type J: -200 to 750°C (-328 to 1382°F) Type K: -200 to 1200°C (-328 to 2192°F) Type T: -200 to 350°C (-328 to 662°F) Type E: -200 to 900°C (-328 to 1652°F) Type N: 0 to 1300°C (32 to 2372°F) Type R: 0 to 1760°C (32 to 3200°F) Type S: 0 to 1760°C (32 to 3200°F) Type B: 300 to 1800°C (572 to 3272°F)
Calibration Note: User facility incorporated; the instrument auto-calibrates on every A/D cycle
Logging Interval: 0
Number of Inputs: 8
Display Type Note: LCD, backlight, Display Resolution: Thermocouple ranges 0.1°C, Pt100 range 0.01°C
Supply Power Note: 6 Vdc (5.5 to 9.0V) via universal mains adaptor (supplied), 120 to 250V, 50/60 Hz
Supply Power Type: DC
Temperature Drift: ±0.01% of span per °C
Thermocouple Type: N/A
Linearization Points: ±0.05°C
Additional Features 1: Real Time Logging, AC Adapter Provided
Display and Indications: Channel number, measured temperature (°C or °F)
Temperature Sensor Type: Thermocouple Type R, Thermocouple Type S, Thermocouple Type B
Storage Temperature, Max: 70 °C
Storage Temperature, Min: -20 °C
Thermal Effect Zero Shift: ±0.01% of span per °C
Cold Junction Compensation: Automatic, accurate reference
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
Material Construction Option: N/A
