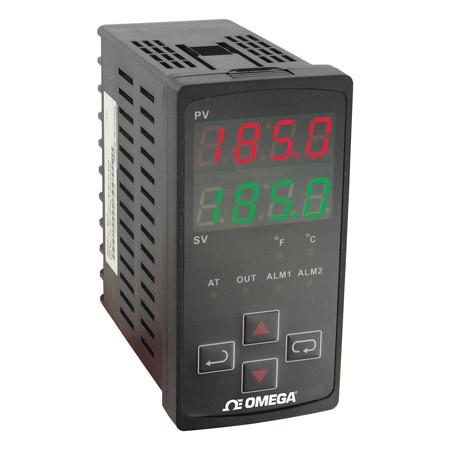

Weight: 425 g
Accuracy: ± 0.25 %
Input Type: Thermocouple, RTD, Thermistor
Form factor: 1/8 DIN Vertical
Display Size: 9.53 mm (.37 in)
Display Type: 4 Digit LED
Accuracy Note: ± 0.25% span, ± 1 least significant digit
Memory Backup: Non-Volatile
Output Detail: DC Pulse;14V, 10 to -20% (max 40 mA)
Output Signal: DC Pulse
Control Output: DC Pulse
Data Interface: RS485 Modbus
Supply Voltage: 100 to 240 Vac
Measuring Range: Pt100Ω RTD: 0 to 100°C, -20 to 500°C, -200 to 600°C Type B: 100 to 1800°C Type S: 0 to 1700°C Type R: 0 to 1700°C Type N: -200 to 1300°C Type E: 0 to 600°C Type T: -20 to 400°C, -200 to 400°C Type J: -20 to 400°C, -100 to 850°C Type K: -200 to 1300°C, -200 to 500°C Type L: -200 to 500°C Type U: -200 to 800°C
Measurement Type: Temperature
Number of Inputs: 1
Cutout Dimensions: 92 x 46 mm
Display Type Note: Two 4-digit, 7-segment LED Display
Enclosure Ratings: IP66
Supply Power Note: 50/60 Hz
Supply Power Type: AC
Depth Behind Panel: 79.2 mm
Panel Thickness, Max: 9.5 mm
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
