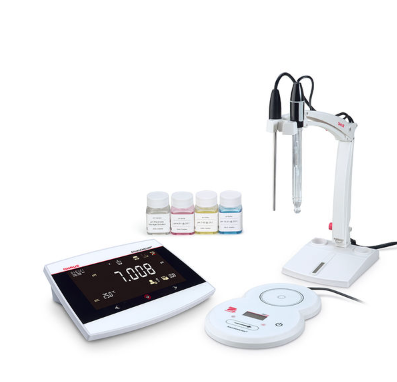

OHAUS AB41PH-F AQUASEARCHER™ AB41PH BENCH METER (-2.000…20.000 pH)

pH:

Measuring Range: -2.000 to 20.000 pH

Resolution: 0.1/0.01/0.001 pH

Selectable Resolution: Yes

Accuracy: ± 0.002 pH

Pre-Defined Buffer Groups: 5

ORP, RmV:

Measuring Range: ± 2000.0mV

Resolution: 0.1 mV

Accuracy: ±0.3 mV

Units: mV, RmV

Temperature:

Measuring Range: -10.0 to 125.0 °C; 14°F to 257°F

Resolution: 0.1 °C, 0.1 °F

Accuracy: ± 0.3 °C, ±0.3 °F

Calibration: 1 point cal offset

Calibration:

Calibration Points: Up to 5 points

Calibration Sign: Slope/offset & Face

Calibration Mode: Linear

Meter Specifications:

Display Type: 6.5" Segment & Dot matrix LCD with backlight

Multilanguage User Interface: English, Spanish, French, Portuguese, Chinese, Russian and Turkish

Measurement End-point Modes: Auto-stop, Timed, Continuous

Datalog for measurement: 1000 sets data points with time and date stamp

Datalog for calibration: 10 sets

Keypad: Capacitive touch

Output: Connect to PC via RS232 and USB, Connect to Printer via RS232

Password management: 10 User ID for password management

pH electrode input: BNC

Temperature input: Cinch, NTC 30 kΩ

Installation Overvoltage: Category II

Pollution: Degree 2

Power Supply: Universal, 100-240 VAC, 50-60 Hz

Ambient Operating: 5 to 40 ˚C, 5 to 80 %, non-condensing
