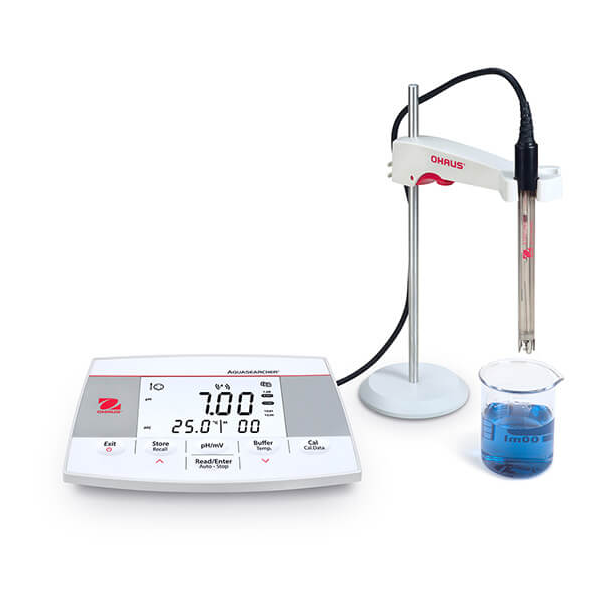

OHAUS a-AB23PH-F Bench PH Meter (0.00~14.00 pH)

pH

Measuring Range: 0.000 to 14.000 pH

Resolution: 0.01 pH

Selectable Resolution: No

Accuracy: ± 0.01 pH

Pre-Defined Buffer Groups: 2

ORP, Redox

Measuring Range: ± 1999mV

Resolution: 1 mV

Accuracy: ±1 mV

Units: mV

Temperature

Measuring Range: 0.0 to 100.0 °C; 32.0 °F to 212.0 °F

Resolution: 0.1 °C, 0.1 °F

Accuracy: ± 0.5 °C, ±0.5 °F

Calibration: No

Calibration

Calibration Points:  Up to 3 points, 6 pH buffers available (1.68, 4.01, 6.86, 7.00, 9.18, 10.01, 12.45)

Calibration Sign: Face Sign

Calibration Mode: Linear

Meter Specifications

Display Type: 5" segment LCD with backlight

Modes Auto-stop, Continuous

Datalog for measurement 99 sets

Datalog for calibration Last calibration

Keypad Membrane

pH electrode input BNC

Conductivity input Mini-Din

Temperature input Cinch, NTC 30 kΩ

Installation Overvoltage Category II

Pollution Degree 2

Power Supply Universal, 100-240 VAC, 50-60 Hz

Ambient Operating 5 to 40 ˚C, 5 to 80 %, non-condensing
