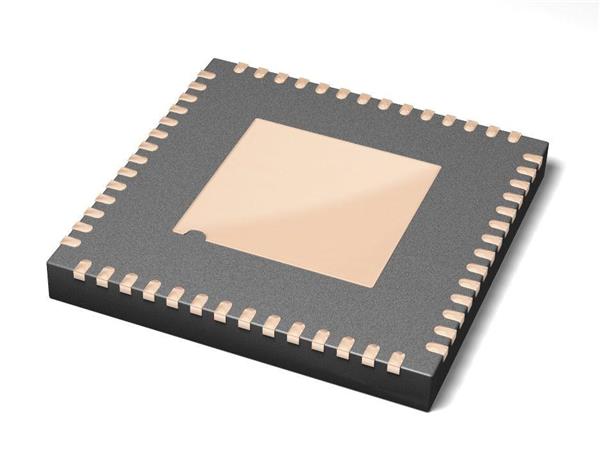

Logic Type: I/O Expander
Output Type: Open Drain
Unit Weight: 171 mg
Logic Family: PCA9506
ESD Protection: 2 kV
Interface Type: I2C, Serial
Mounting Style: SMD/SMT
Number of I/Os: 40 I/O
Output Current: 50 mA
Output Voltage: 4 V
Interrupt Output: With Interrupt
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.3 V
Pd - Power Dissipation: 500 mW
Maximum Clock Frequency: 400 kHz
Operating Supply Current: 225 uA
Operating Supply Voltage: 2.3 V to 5.5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
