Specification
Measuring thicknesses range for steel, mm: 2.0...60.0
Basic measurement accuracy, mm: 0.08
Permissible gap between device and testing
object, mm: Up to 3
Permissible probe vertical deviation to the
testing surface normal, grad: ±25
Maximum measurements per second: 16
Setting range of the ultrasonic velocity, m / s: 1000-9999 with 1m/s step
Operating oscillation range, MHz: 3...5
Excitation wave type:Transverse wave, radial-polarized wave in surfacenplane of testing object
Operating temperature range, ° C: -20 to +50
Overall dimensions, mm: 163x39x32
Time of continuous work hours, not less, h: 5
Standard set:
EMA Thickness Gauge
Batteries
Tablet
Charger
Cables
Calibration certificate
Operating manual
Case
Available options:
Couplant; UT-probes; Calibration blocks
Features

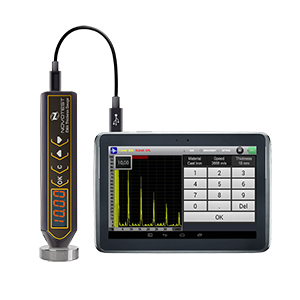

Ultrasonic Thickness Gauge NOVOTEST UT-3A-EMA
Thickness measurement (steel) – 2...60 mm
Without application of couplant and advance surface preparation,through air gap
Allows user to put the probe not exact perpendiculary to the surface,
Allows to reduce the human factor and disturbing factors
User can connect gauge to a tablet, smartphone or other device based on Android OS. Allows user to expand the capabilities of the
UT-3K-EMA thickness gauge to the level of a modern flaw detector
The device has a bright contrast LCD display
A-scan, B-scan, calibration settings
Manual
