Measuring thicknesses range for steel: 0.4 – 1000mm
Unit Type: mm, inch, μs
Resolution: 0,01mm
Ultrasound velocity adjustment range: 700-17000 m/s
Ultrasound velocity in the standard device sample: 6070 ± 70 m/s
Operating modes:
+A-scan
+B-scan
+Digital mode
+Control mode
+Manual
Measurement methods:
+Echo
+Echo Echo (Dual Echo)
+Peak-peak
Display Colour: 3.5 inch 480 * 320
Menu Language: English, Russian
Weight of the electronic unit, not more: 0.5kg
Dimensions (L x W x H): 165x90x50mm
Power Supply: Built-in Li-ion Battery
Time of continuous work, not less than, h: 10 ( up to 20 by special order )
Operating temperature range for the electronic unit, ° C: -20 to +40
Air moisture, no more: 98 %, at 35 °С
Include:
+ Electronic unit Ultrasonic Thickness Gauge UT-2A
+ Probe 1 pc
+ Lemo-Lemo сable
+ Cable for PC
+ Charger
+ Operating manual
+ Calibration certificate
+ Case
Description:

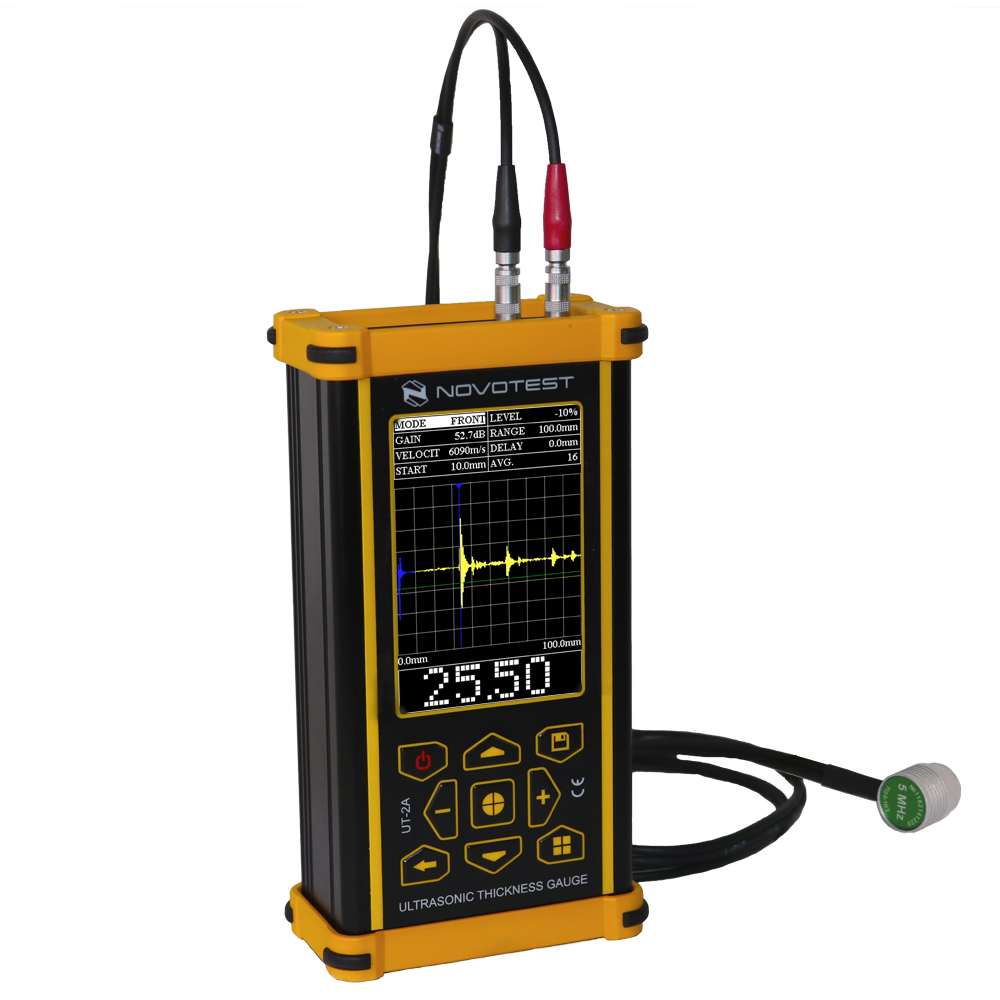

Ultrasonic thickness gauge with A-scan UT-2A is a powerful, lightweight and portable thickness gauge, made in an ergonomic shock-resistant case with rubber protectors – a modern industrial version of a general-purpose thickness gauge. It is an excellent choice for expert ultrasonic testing in the laboratory and the field conditions.
Advantages:
- Wide range of measuring thicknesses
- Function of thickness gauge and flaw detector
- Convenience and ease in operation
- B-scan mode, which allows user to get the product profile like a picture that is easy to read
- Minimum number of controls
- Select the type of probe from archive
- Preset velocity of ultrasound
- High brightness color display
- Indicator the presence of acoustic contact
