NOVOTEST SP-1M Digital Surface Profile Gauge (2-360μm, ± 2μm)

Dimensions of electronic unit, mm: 120x60x25

Operating temperature range, °C: -5 … +40°C

Batteries: 2 AA

Time of continuous work hours, not less: 20

Weight of electronic unit with batteries, no more, kg: 0.2

Specification of the DSH probe:

- Measurement range: 2-360 μm

- Measurement accuracy: ± (3% ± 2 μm)

- Dimensions, mm: Ø 12×45

Standard package:

-Electronic unit NOVOTEST TP-1M

-Probe DSH – 1 pc

-Set of reference samples

-Batteries (AA) – 2 pcs

-Charger

-Operating manual

-Case

Description

- Digital Surface Profile Gauge NOVOTEST SP-1M is designed for profile measuring on either flat or curved surfaces. Also it can be used for measurements of surface roughness (Rz), after abrasive blasting pre-painting work.

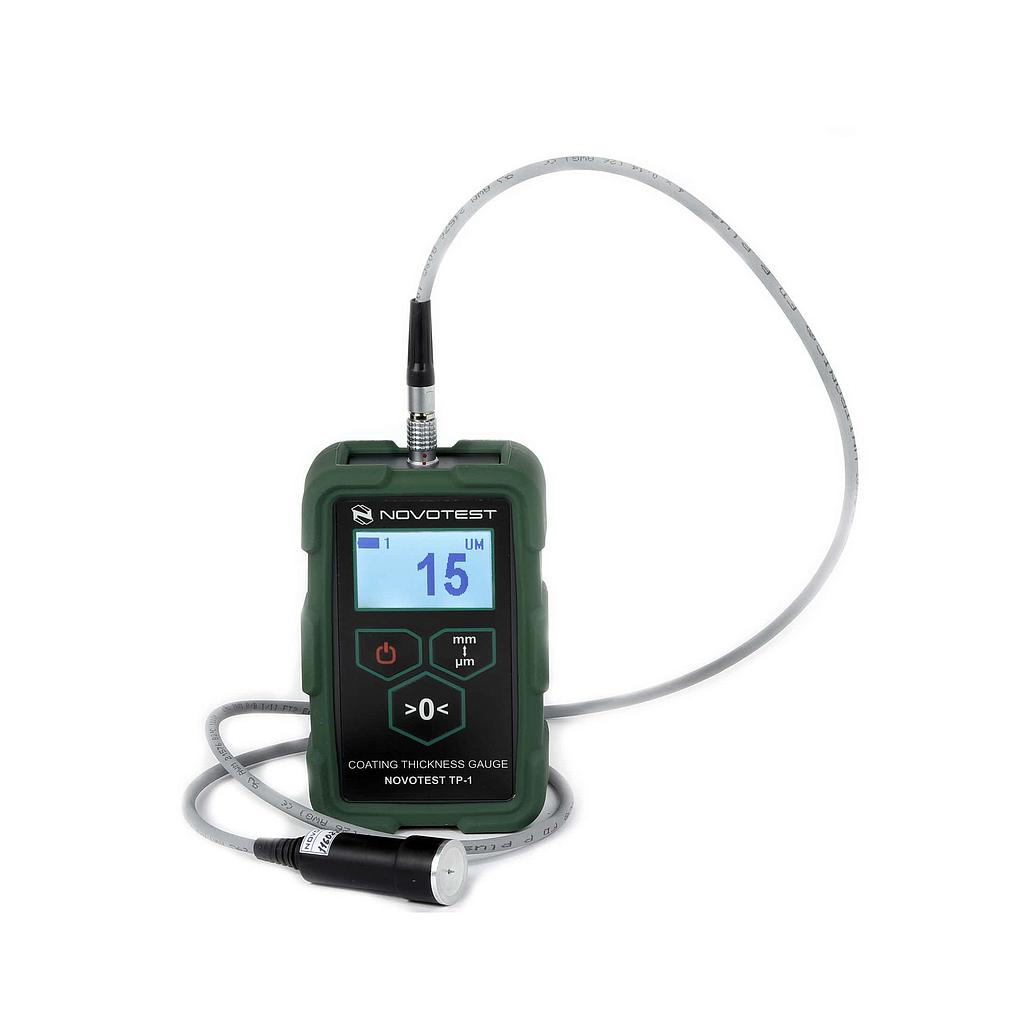

- The electronic unit is the same as Coating Thickness Gauge NOVOTEST TP-1M.

- NOVOTEST SP-1M consist of electronic block of Coating Thickness Gauge NOVOTEST TP-1M and probe DSH.
