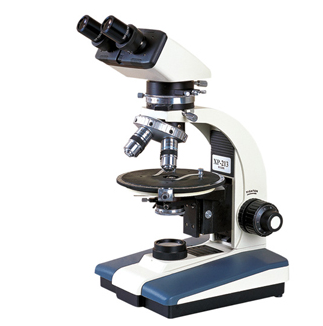

Viewing Head: Sliding binocular viewing head, Inclined at 30°
Eyepiece
Eyepiece WF10×/18 with scale of cross hair
Eyepiece WF10×/18 with graticule
Eyepiece WF 10×/18
Objective: Strain free achromatic objective 4×, 10×, 25×, 40×, 63×
Nosepiece: Backward quadruple nosepiece, Center adjustable
Analyzer: Rotatable analyzer with gradation 0°-90°
Bertrand Lens: Bertrand lens, Sliding in/out of optical path
Optical Compensator: λ Slip（first class red）, 1/ 4λ Slip, Quartz wedge
Revolving Round Stage: Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale
Condenser: NA1.25 Abbe condenser with iris diaphragm & filter
Focusing: Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm
Polarizer: 360°rotatable
Illumination: 12V/ 20W Halogen Lamp, Brightness Adjustable (Transmitted illumination)
Accessories:
Micrometer
Blue filter
