Shutdown: Shutdown
Unit Weight: 330 mg
Amplifier Type: Rail to Rail Operational Amplifiers

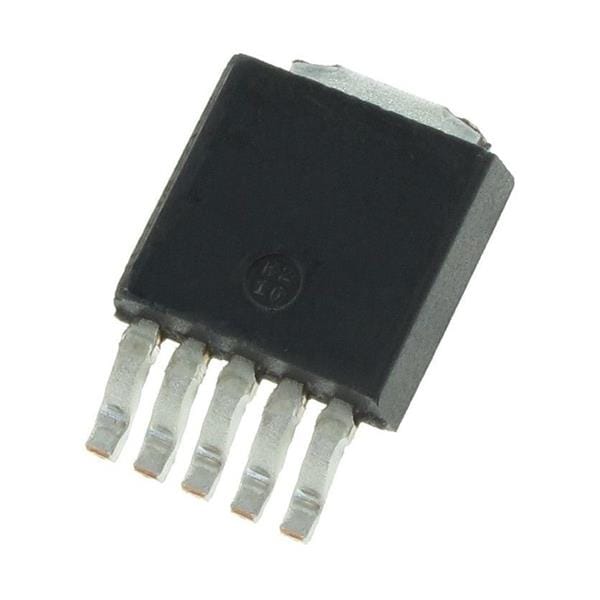

Mounting Style: SMD/SMT
SR - Slew Rate: 3.5 V/us
THD plus Noise: 0.03 %
Voltage Gain dB: 100 dB
Number of Channels: 1 Channel
Supply Voltage - Max: 36 V
Supply Voltage - Min: 6.8 V
Pd - Power Dissipation: 1.19 W
Ib - Input Bias Current: 1 pA
Operating Supply Current: 9.5 mA
Operating Supply Voltage: 6.8 V to 36 V
Vcm - Common Mode Voltage: - 15 V to 15 V
Output Current per Channel: 200 mA
Vos - Input Offset Voltage: 2 mV
GBP - Gain Bandwidth Product: 1.5 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
en - Input Voltage Noise Density: 50 nV/sqrt Hz
CMRR - Common Mode Rejection Ratio: 80 dB
