Bridge Resistance: 350 Ohm 120 Ohm 1000 Ohm
Maximum Number of Differential Analog Input Channels: 8
Maximum Sample Rate: 25.6 kS/s
Analog Input Voltage Range: -0.1 V to 0.1 V -0.2 V to 0.2 V -0.5 V to 0.5 V -10 V to 10 V -20 mV/V to 20 mV/V -40 mV/V to 40 mV/V -50 mV/V to 50 mV/V -80 mV/V to 80 mV/V -200 mV/V to 200 mV/V -1 V to 1 V -10 mV/V to 10 mV/V -4 V to 4 V
Bridge Configurations: Quarter Bridge Full Bridge Half Bridge
Measures bridge-based sensors, such as strain gages and load cells, in PXI systems.

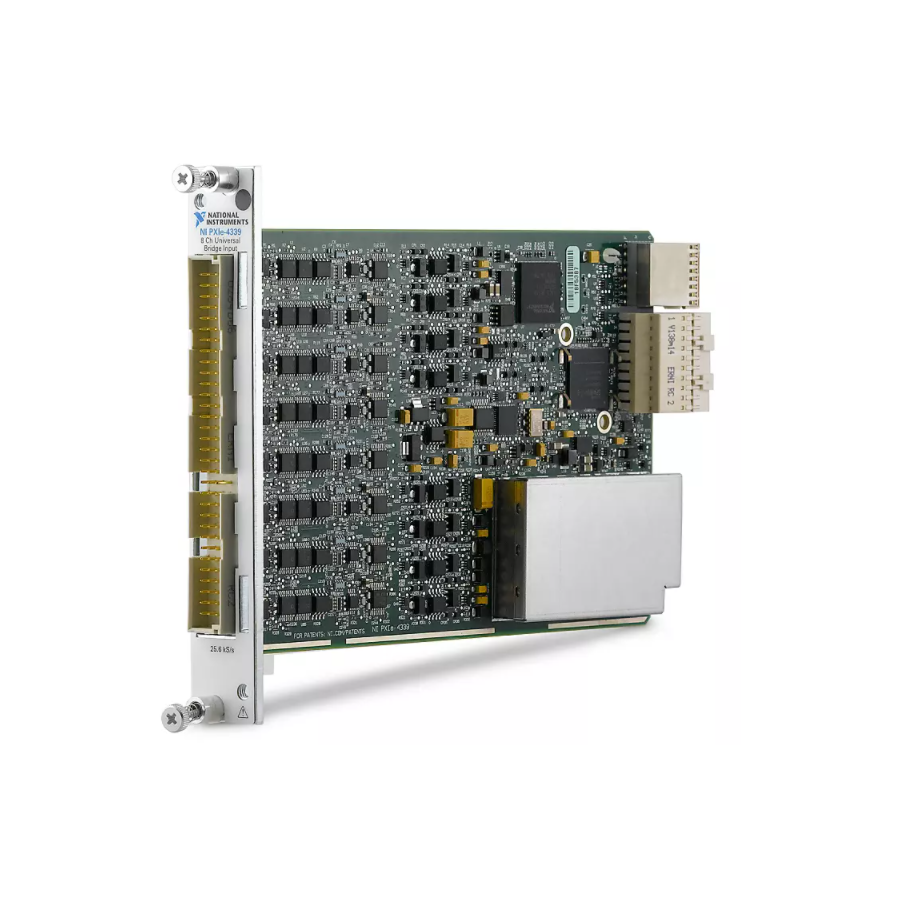

The PXI Strain/Bridge Input Module features up to eight channels that support quarter-, half-, or full-bridge sensors at speeds up to 102.4 kS/s. This module provide increased accuracy, high data throughput, and a range of synchronization features. The module is ideal for dynamic strain, load and pressure measurements, and test cell installations requiring accuracy and flexibility. Some models include optional features such as remote sensing, internal bridge completion, and shunt calibration options per channel.The PXI Strain/Bridge Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
