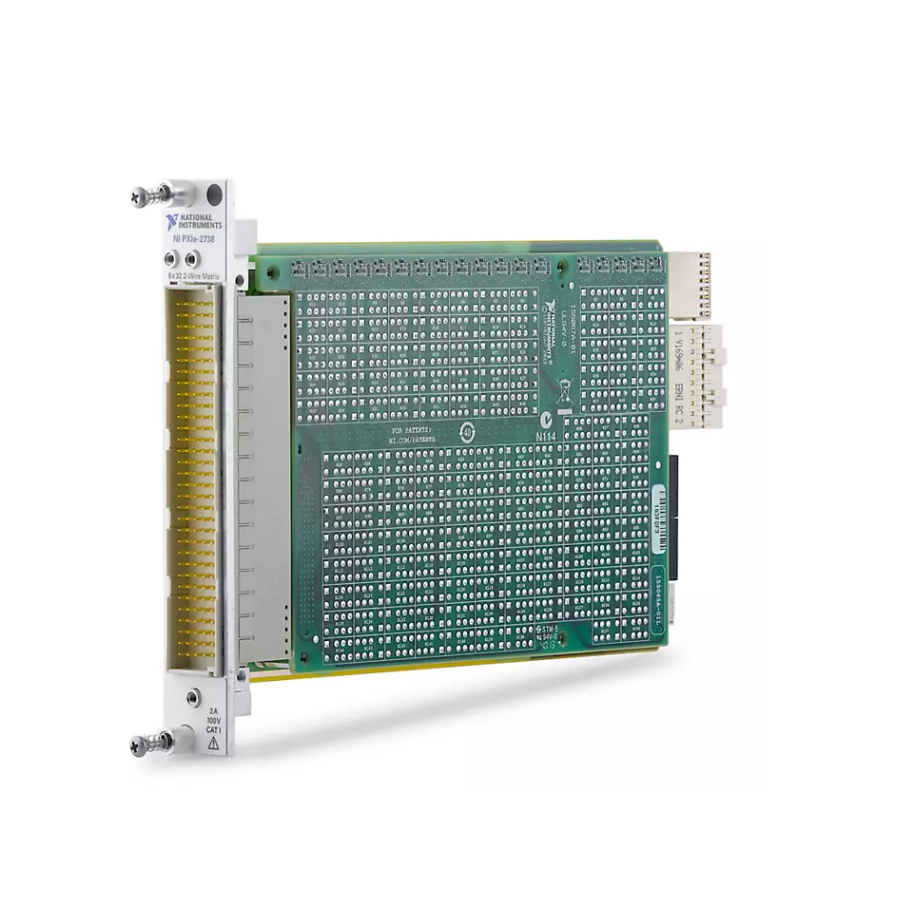

Bus Connector: PXIe
Mode (n-wire): 2-wire
Crosspoints: 256
Number of Banks: 1
Number of Rows: 8
Number of Columns: 32
Maximum Switching Voltage DC: 100 V
Maximum Switching Current DC: 2 A
Relay Type: Electromechanical
Switch Bandwidth: 10 MHz
Scan Rate: 1000 cycles/s
Connect any input to any output to simplify wiring in automated test systems.
PXI Matrix Switch Modules are organized into rows and columns and provide maximum flexibility for switching systems by allowing you to connect any channel to any other channel. PXI Matrix Switch Modules use a variety of relay types, including electromechanical armature relays, reed relays, field-effect transistor (FET) relays, and solid-state relays, each with their own benefits, allowing you to choose a matrix that fits your requirements. To program the switches, you can use the IVI-compliant NI-SWITCH driver software, complete with help documentation, example programs, and a soft front panel application for interactive control of switches. For intelligent management of complex switch systems, NI Switch Executive provides additional software tools to help you design, build, and deploy your switching system.
