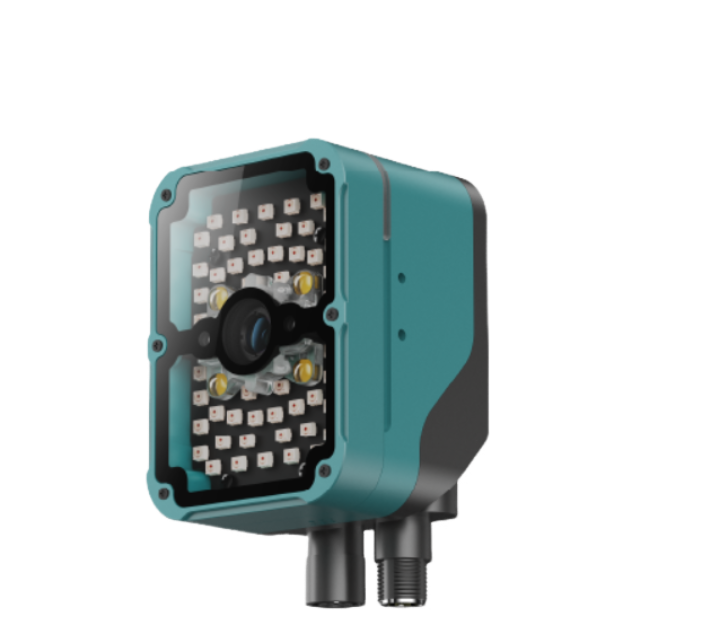

Type: Long-distance type
Sensor: CMOS Image Sensor
Number of pixels: 1920 × 1200 pixels
Illumination: 14 High-intensity red LED
For part lighting(Standard)
Effective focal length: 15mm
Aim: 2*circular laser
Reading specifications
Supported symbol:
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, Plessey, Deutsche14, Deutsche12
2D: QR Code, Data Matrix, PDF417, Aztec Code, Micro QR.
Minimum resolution
1D: 0.8mil
2D: 2mil
Reading distance: 100 to 2000mm
Motion Tolerance: 2m/s
Min. Symbol Contrast: ≥15%
Physical
Mechanical/ Electrical specifications
Dimensions: 61(W)×52.1(D)×100.9(H)
Weight: 394.7g
Prompt: Buzzer, pilot lamp
Power voltage: 24VDC
Current@ 24V DC:
Rated power: 7.9W
Standby current: 47mA
Input: Maximum load current: 15mA(Input:5 V~30V); 2 inputs
Output: Maximum load current 50mA(Input:≤30V); 2 outputs
Communication Interface: RS-232, RS485(optional), USB, TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet
