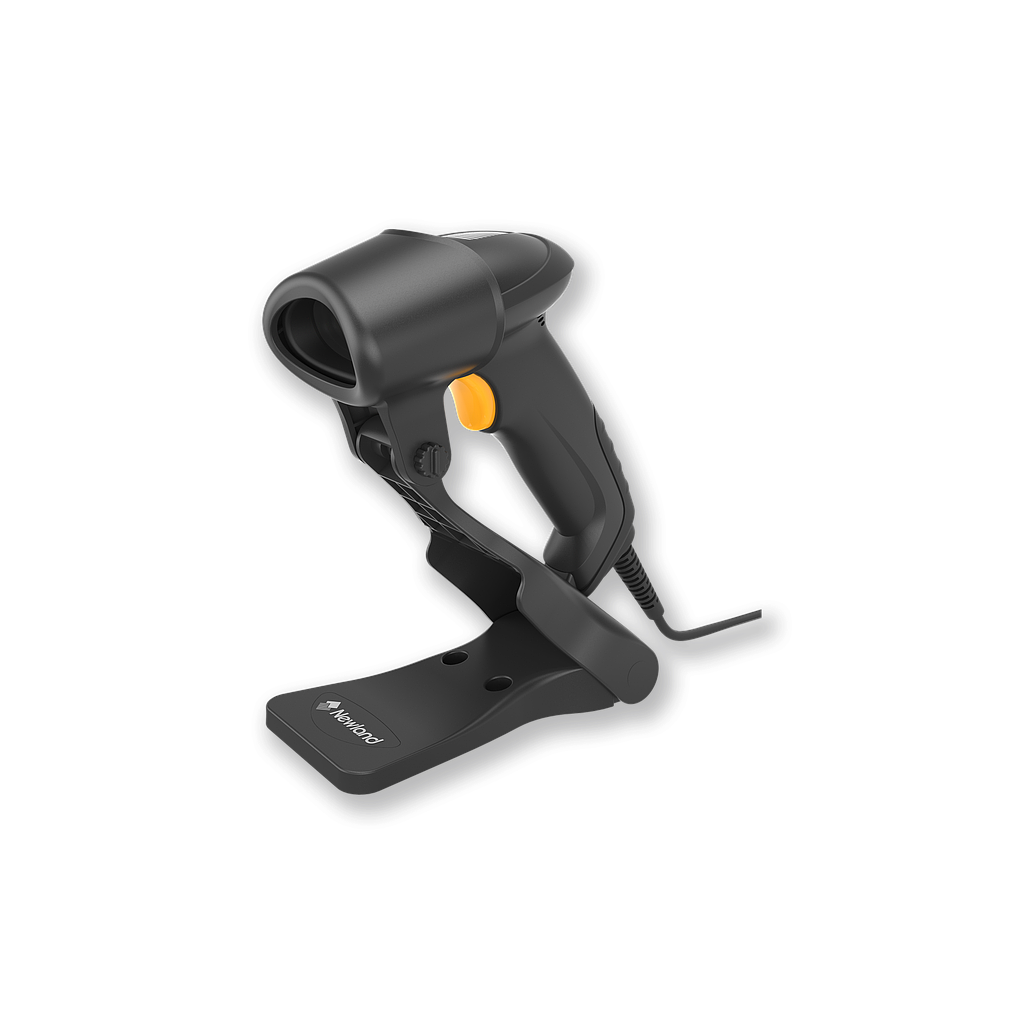

NEWLAND HR3280-S5 Handheld Scanners (1D, 2D, 1280 x 800px)

Data Capture

1D:All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.

2D:All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode.

Image Sensor:CMOS 1280 x 800

Aiming:Green LED

Illumination:Red LED (625±10 nm) / White LED

Scan Modes:Trigger (Level, Pulse), Sense, Continuous Mode

Scan Rate:60 frames per second

Depth of Field EAN 13 (13mil):45-510mm

Depth of Field Code 39 (5mil):75-220mm

Depth of Field PDF417 (6.67mil):70-215mm

Depth of Field DataMatrix (10mil):50-220mm

Depth of Field QR (15mil):20-330mm

Field of View Horizontal:39°

Field of View Vertical:24°

Scan Angle Roll:360°

Scan Angle Pitch:±55°

Scan Angle Skew:±55°

Minimal Print Contrast:25%

Performance

Processor:1GHz, X1500

Physical

Buttons:Trigger

Current @ 5VDC Operating:238.2mA (typical), 260.5mA (max.)

Current @ 5VDC Standby:71.3mA

Dimensions (mm):113.5(W) × 73.3(D) × 159.0(H)

Input Voltage:5VDC ± 5%

Interfaces:RS-232, USB

Material:PC, ABS

Notifications:Beep, LED indicator

Power Consumption:1289.6mW (typical)

Power Supply Input:DC5V, 1.5A

Power Supply Output:AC100~240V, 50~60Hz

Weight:162g

Environmental

Ambient Light:0 ~ 100000 lux (natural light)
