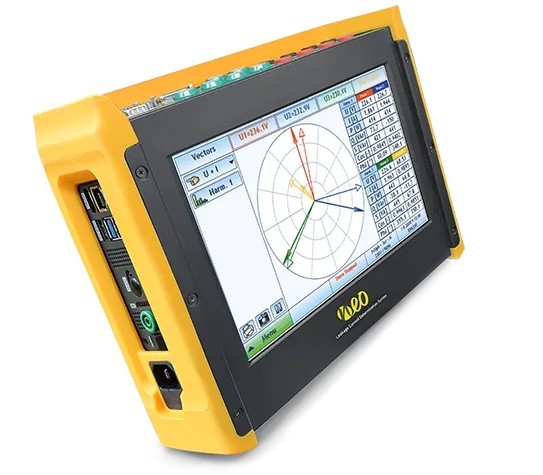

NEO Messtechnik PQA 8000H Mobile Power Quality Analyzer (800 V / 1600 V)

Accuracy: 0.05%

Sampling Rate: Up to 1 MS/s

Supraharmonics: 500 kHz

Resolution: 18 bit

Inputs: 4× Voltage, 4× to 8× Current

Voltage Range: 800 V / 1600 V

Safety Category: CAT III 1000 V / CAT IV 600 V

Isolation: 6 kV (CH - GND & CH - CH)

Current Input: Rogowski, Clamp (AC/DC)

Dynamic Range: 0.5 mA to 150 kA (15× Ranges)

Clamp Power Supply: +9 V / ±15 V

Data Storage: Up to 1 TB

IEC61000-4-30: Class A (Ed.3 and Ed.4)

Interfaces: Digital I/O, CAN, RS485, GPS, LAN, WLAN, LTE, Bluetooth
