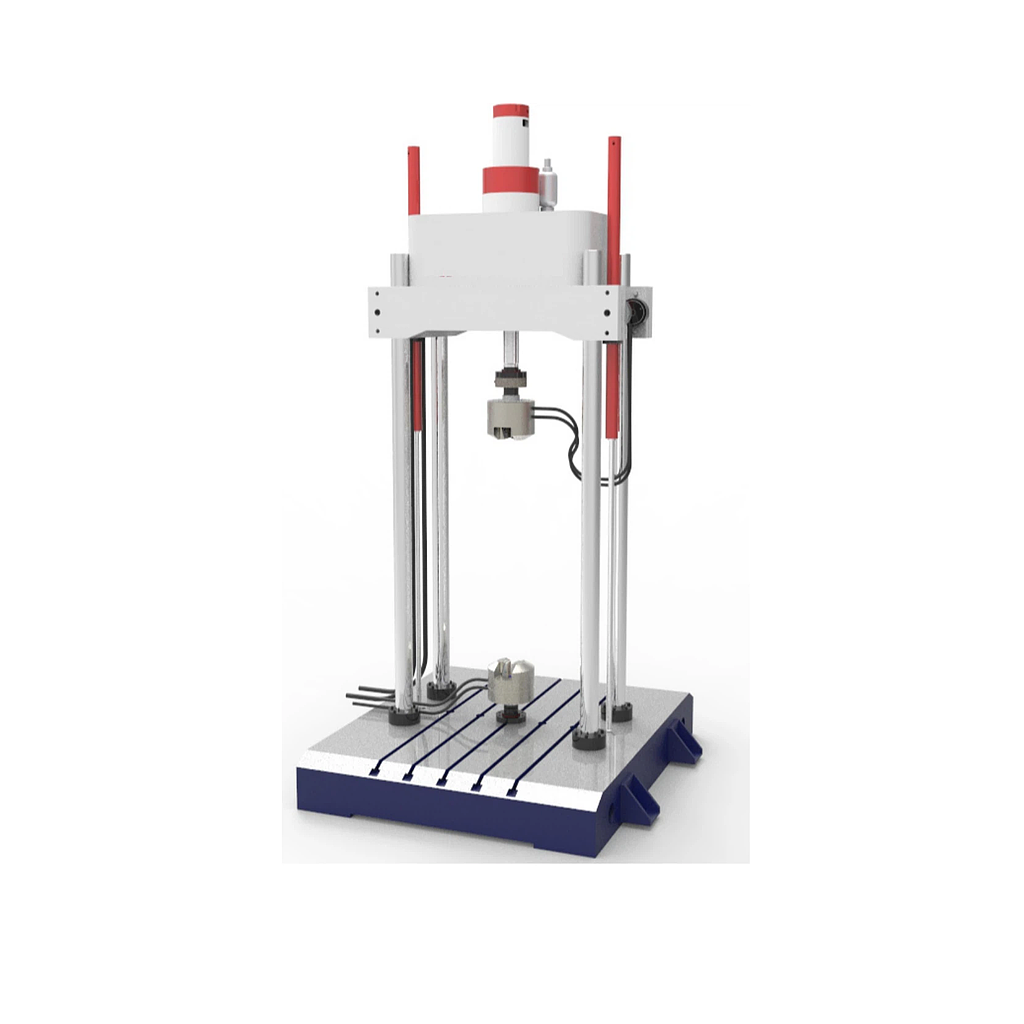

Maximum test force KN (dynamic and static): 250KN
Load frame: Four columns
Effective width of column mm: 650×500
Test space mm: 1000
Test force measurement range: Dynamic 2%～100%FS
Force accuracy and fluctuation: Better than 1% of the indicated value; Amplitude fluctuation is not greater than ±1%F.S of each gear
Test force resolution: 1/250000 code
Test force indication accuracy: Dynamic ±1%; Static 0.5%
Displacement measurement range: 100mm(±50mm)
Displacement measurement resolution: 0.001mmm
Displacement indication accuracy: Indication accuracy 1% and above within ±0.5%FS
Deformation: Indication accuracy 2% and above, within ±0.5%
Frequency range: Standard machine 0.01-20HZ (customizable up to 50Hz) Static pressure support 0.01-100HZ
Main waveforms: Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by the controller)
Auxiliary tools: Forced flat push clamp, equipped with stretching rod and edge cutting jaws (optional)Compression aid (optional)
