Maximum test force: 6500kN
The measurement range is 4% to 100% (the whole process is not graded), and the resolution of the control system is not less than 500,000 yards
Force control rate control range: 1kN/s～50kN/s
Speed control range: ≤±5%
Indicating value accuracy (test force) is better than ±1% of indicating value
Displacement measuring range: 0～200mm
Indicating value accuracy (displacement): ±1%
Repeatability: ±0.5%
Relative resolution: ±0.5%
Piston stroke: 200mm
Stretch spacing 3500mm
Protection function: It will automatically stop when the test force exceeds 2% to 5% of the maximum test force.

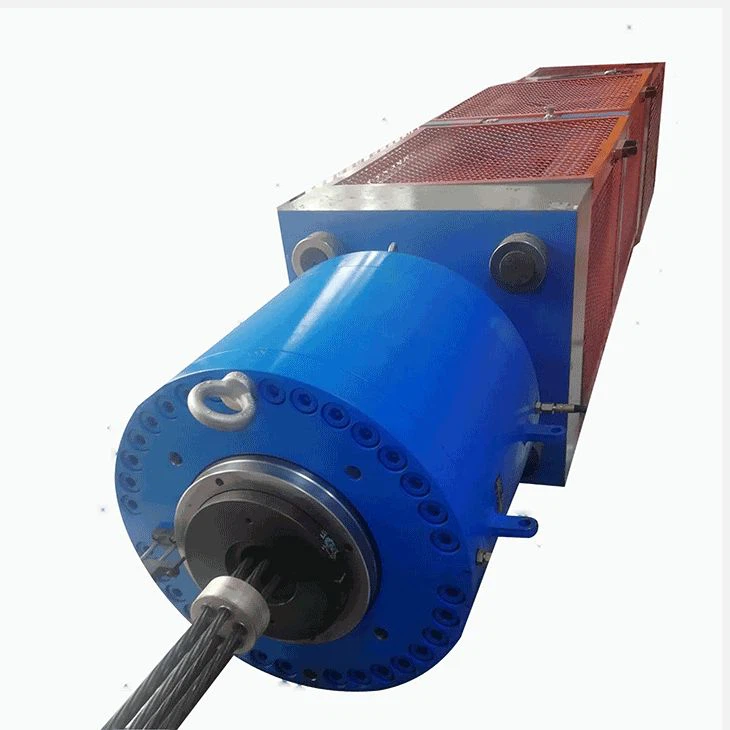

Mainframe form of testing machine: Horizontal structure; four columns
Equipment power: AC380V 50Hz/3.5kW
Host size: (L×W×H) 4700×800×900mm
Machine weight: 4700kg
Control cabinet size and weight: 1180×800×1310mm; 100kg
