Measurement Range: 0 to 2mm
Noise: ≤ 0.0000001 √(Hz) FSR
Repeatability: 100PPB
Digital Resolution (LSB): 1pm
Long TermStability/Drift: 20ppm/month or better at 20°C
Digital Linearity Accuracy: ±0.01 % FSR
Digital FrequencyResponse: 5kHz
Output Data Rate: 20k (SPS)
Temperature Stability: ± 100 ppm/°C
Digital Butterworth Filter: 50, 100, 500, 1kHz, or 5kHz
Exponential Filter: No filtering
Range Extensions: 5X max
ADC bit count: 24 bits
Basic Interface: Command-Response, ASCII commands
Digital Output: Micro USB and RJ-45 Ethernet 10-100
Digital Latency: < 4ms (Cap input to Ethernet output)
Encoder Input: 0-24VDC max A quad B 500k RPM
IncludedSoftware: MTI Basic, LabView, .NET and DLL Drivers
OperatingTemperature: 0-40°C, 95% non-condensing
OperatingEnvironment: IP40
PowerRequirements: 24 VDC < 8W
Target Ground Return: Integrated with powerconnector
Input Protection: Reverse Polarity(Over volt to 35VDC)
ESD Protection: ± 4kV Contact and ±8kV Air

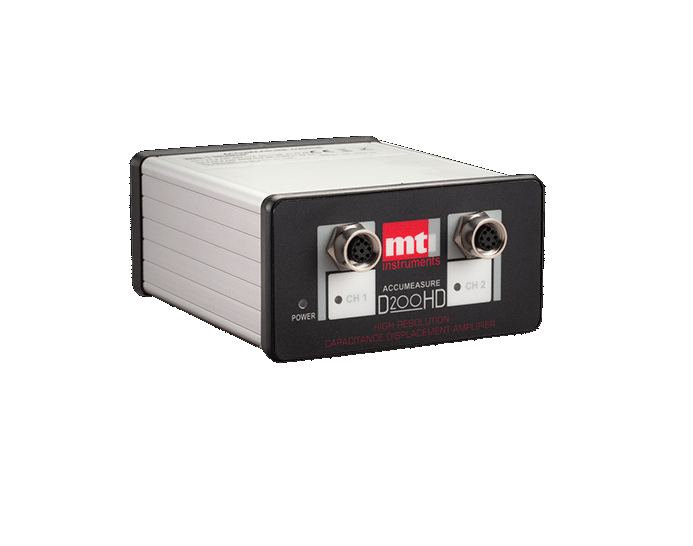

Amplifier Case Dimensions: 2”(53mm) H x 4”(103mm) W x 4.7” (120mm)D
Case Mount: DIN Mount Kit
Preamp Connectors: M12-8
Power andConnectors: Phoenix screw terminal
Preamp to Amp cable length: 3 meters
Preamp Case Dimensions: 87mm L x 47mm W x 25 mm H
Probe Connectors: SMA
Probe to preamp cable length: 177mm (7 inch)
Number of Channels: 1-2)
Multi channel synchronization: Master Slave (simple wire)
