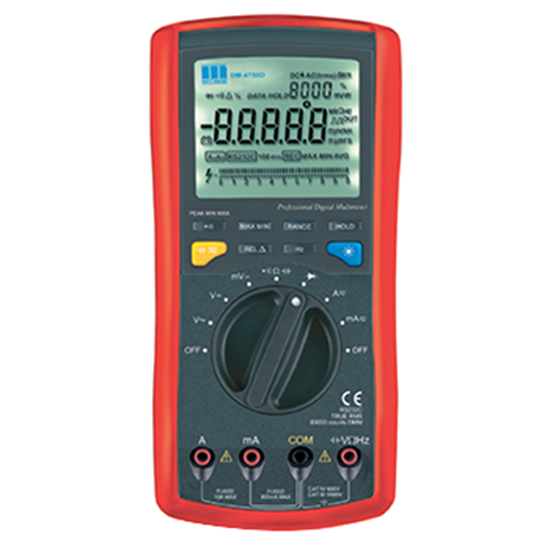

MOTWANE DM 4750D Digital Multimeter

Manufacturer: MOTWANE

Model: DM 4750D

Origin: India

Warranty: 12 months

Power Supply: 9V( 6F22)

Operating Temperature: 0° C to 40° C

Storage Temperature: 20° C to 60° C, <80 % RH( with battery removed)

Relative Humidity: Max 80% up to 31

Dimensions: 195mm x 90mm x 40mm ( with Rubber Holster)

Weight: 600 gms with Rubber Holster

Temperate Coefficient: nominal 0.15x ( specified accuracy° C)/ @(0° C-18° C or 28° C-40° C) or otherwise specified

AC Voltage:

800.00mV; 10µV; (±0.8% + 60); (±1.5% + 60); 1000V DC/AC rms Continuous

800.00mV; 10µV; (±0.8% + 40); (±1.5% + 40); 1000V DC/AC rms Continuous

80.000V; 100µmV; (±0.8% + 20); (±1.5% + 20); 1000V DC/AC rms Continuous

800.00V; 1mV; (±0.8% + 20); (±1.5% + 20); 1000V DC/AC rms Continuous

800.00V; 10mV; (±0.8% + 20); (±1.5% + 20); 1000V DC/AC rms Continuous

1000.0V; 100mV; (±0.8% + 20); (±1.5% + 20); 1000V DC/AC rms Continuous

Dc Voltage:

80.000mV; 10µV; (±0.05% + 40); 1000V DC/AC rms Continuous

800.00mV; 10µV; (±0.05% + 20); 1000V DC/AC rms Continuous

8.0000V; 100µV; (±0.08% + 20); 1000V DC/AC rms Continuous

80.00V; 1mV; (±0.05% + 10); 1000V DC/AC rms Continuous

800.00V; 10mV; (±0.05% + 10); 1000V DC/AC rms Continuous

1000.0V; 1000mV; (±0.05% + 10); 1000V DC/AC rms Continuous

AC Current:

80.000mA; 1µA; (±0.5% + 40) 0.1µ A; 1A, 250V Test Type Glass Fuse. 5x 20mm

800.00mA; 10µA; (±0.5% + 40) 0.1µ A; 1A, 250V Test Type Glass Fuse. 5x 20mm

8.0000mA; 100µA; (±0.8% + 40) 0.1µ A; 10A, 250V Test Type Glass Fuse. 5x 20mm

10.000A; 10mA; (±0.8% + 40) 0.1µ A; 10A, 250V Test Type Glass Fuse. 5x 20mm

DC Current:

80.000mA; 1µA; (±0.2% + 40) 0.1µ A; 1A, 250V Test Type Glass Fuse. 5x 20mm

800.00mA; 10µA; (±0.2% + 40) 0.1µ A; 1A, 250V Test Type Glass Fuse. 5x 20mm

8.0000mA; 100µA; (±0.3% + 40) 0.1µ A; 10A, 250V Test Type Glass Fuse. 5x 20mm

10.000A; 10mA; (±0.3% + 40) 0.1µ A; 10A, 250V Test Type Glass Fuse. 5x 20mm

Resistance, Conductance Test:

800.00Ω;0.01Ω; (±0.3% +60); 600Vp

8.0000kΩ;0.1Ω; (±0.3% +40); 600Vp

80.000kΩ; 1Ω; 600Vp

800.00kΩ; 10Ω; 600Vp

8.0000MΩ; 100Ω; (±0.5% +20); 600Vp

80.00MΩ; 1kΩ; (±2% +20); 600Vp

80.000nS; 0.001nΩ; (±2% +120); 600Vp

Continuity Test: 0.01Ω; ≤100Ω, 600Vp

Capacitance Measurement:

1.000nF; 1pF; at the REL mode (±2% +5) ; 600Vp

10.00nF; 10pF; (±2% +3) ; 600Vp

100.0nF; 100pF; (±2% +3) ; 600Vp

1.000µF; 1nF; (±2% +3) ; 600Vp

10.00µF; 10nF; (±3% +5) ; 600Vp

100.0µF; 100nF; (±3% +5) ; 600Vp

Frequency Measurement:

1KHz, 0.01Hz, (±0.02% +1); 600Vp

10KHz, 0.1Hz, (±0.02% +1); 600Vp

100KHz, 1Hz, (±0.02% +1); 600Vp

1MHz, 10Hz, (±0.02% +1); 600Vp

10Hz-10kHz; (±0.1% +3); 1A, 250V Test Type Glass Fuse, 5x20mm, 10A 250V Test Type Glass Fuse

50Hz-10kHz; ; 1A, 250V Test Type Glass Fuse, 5x20mm, 10A 250V Test Type Glass Fuse

Diot Test: 1mV, 600Vp

Duty Cycle: 1% to 99%, 0.01%, 600Vp

Accessories: a pair of test lead, batteries installed, user's manual, RS 232 interface cable, CD ROM
