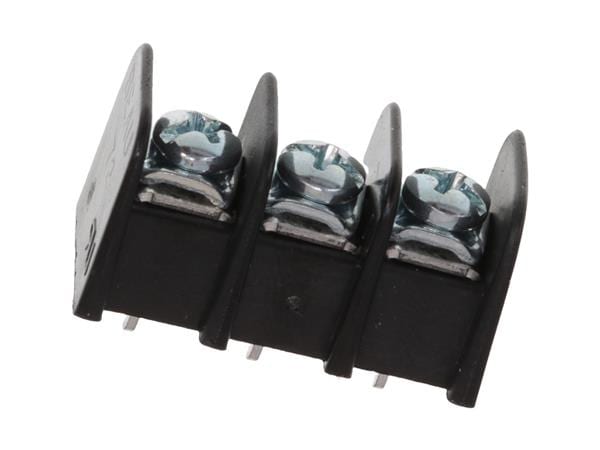

Color: Black
Pitch: 9.53 mm
Width: 15.7 mm
Height: 16.8 mm
Length: 30.7 mm
Unit Weight: 10.780 g
Current Rating: 25 A
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 300 VAC/DC
Wire Gauge Max: 12 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Contact Material: Brass
Housing Material: Polybutylene Terephthalate (PBT)
Wire Orientation: Horizontal
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
