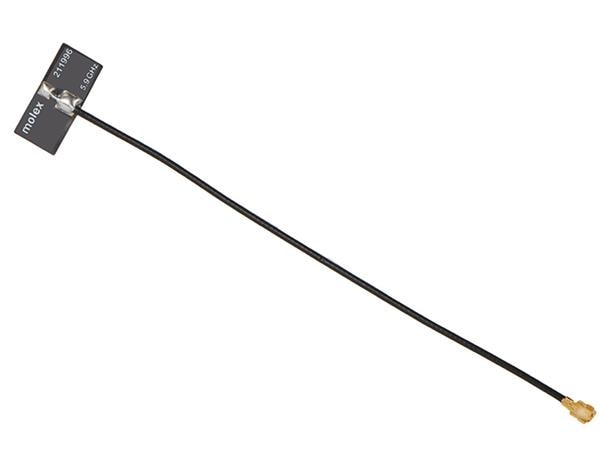

Gain: 5.75 dBi, 6.75 dBi
Style: T-Bar Flex
Width: 7.6 mm
Length: 16.4 mm
Impedance: 50 Ohms
Cable Type: 1.13 mm
Cable Length: 50 mm
Polarization: Linear
Power Rating: 2 W
Mounting Style: Adhesive Mount
Frequency Range: 5.8 GHz to 8.5 GHz
Number of Bands: 2 Band
Mechanical Style: PCB Trace
Maximum Frequency: 8.5 GHz
Minimum Frequency: 5.8 GHz
Termination Style: Connector
Antenna Connector Type: MHF-1
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
